Eddy Current S2G2 - 800

The S2G2-800 Eddy current instrument can handle the most demanding environments.

Offered in both tubing and surface array configurations, the S2G2 is ideal for applications within Balance-of-Plant/Power Generation, Oil and Gas and Industrial markets.

Download File Website Link
  • Overview

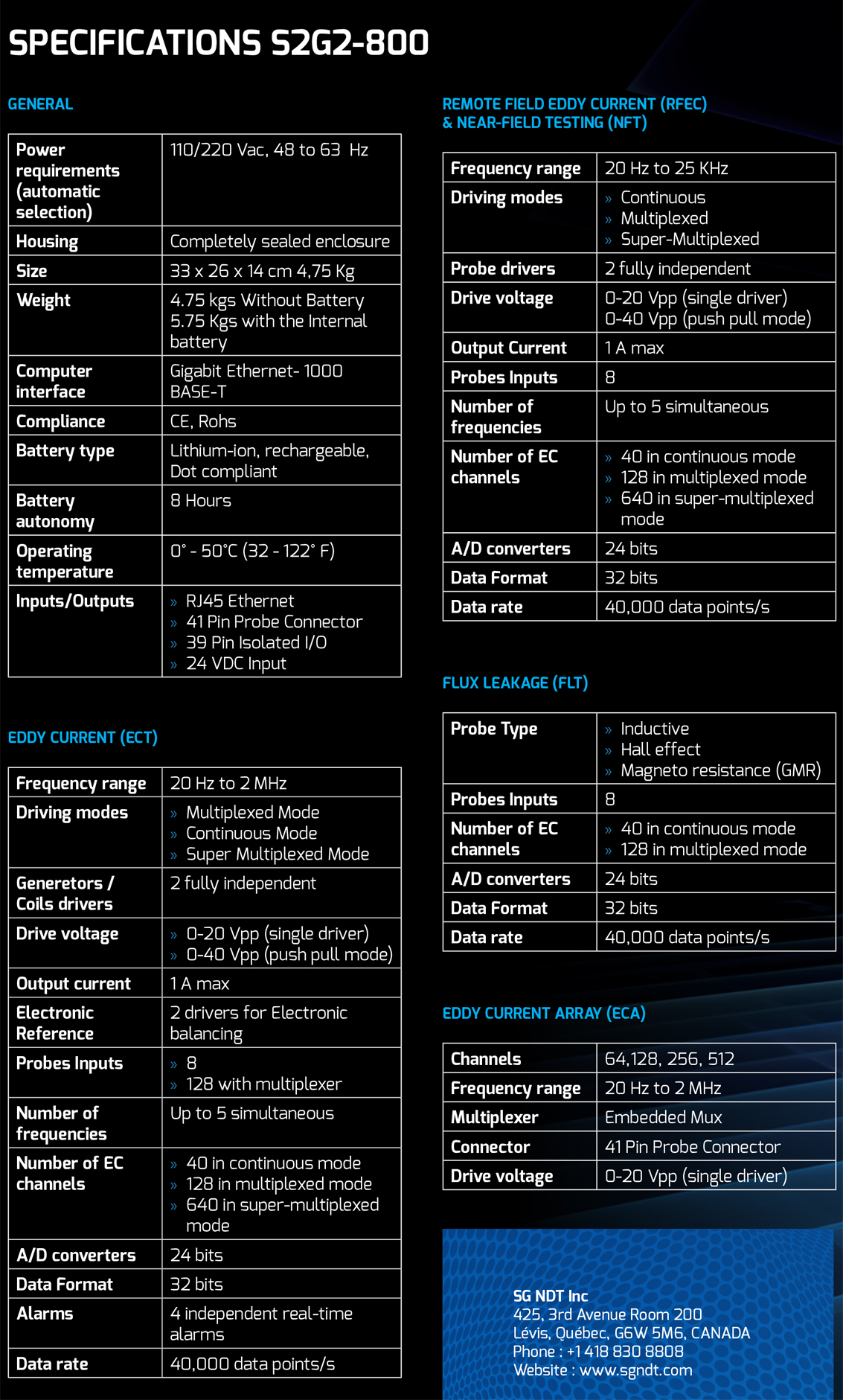

  • Technical Data
  • Accessories
  • Downloads

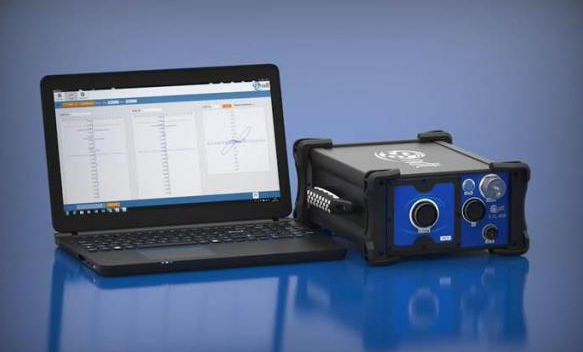

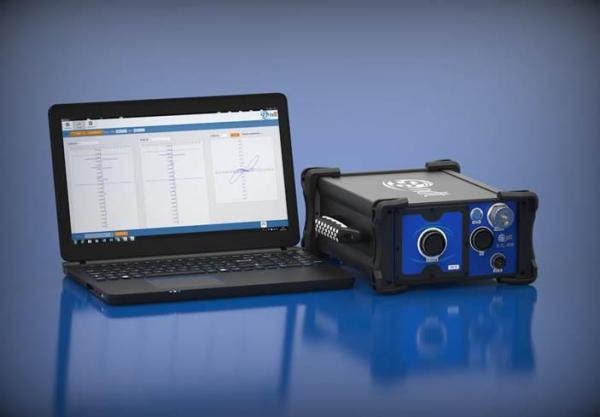

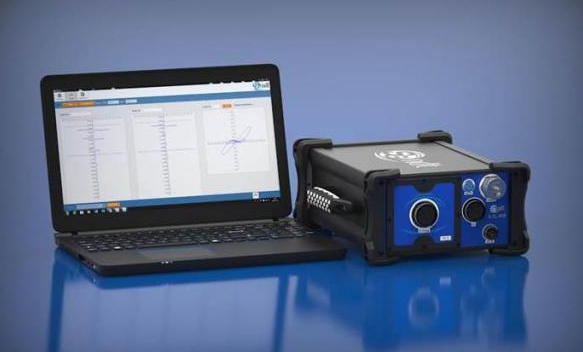

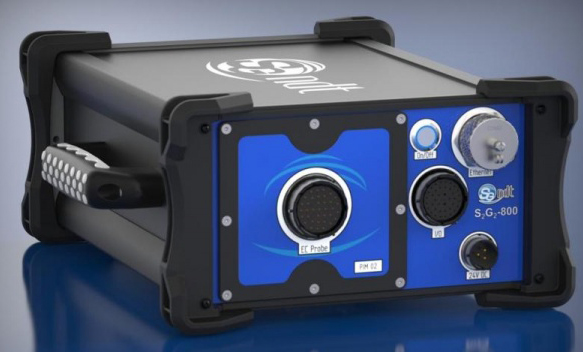

S2G2 - 800 Eddy Current Instrument





» 8 real time analog input



» Up to 16 time slot



» Support up to 128 / 256 / 512 channels array probe



» Up to 5 frequencies simultaneously



» Compatible with Array probes



» Compatible with ECT / ECA / RFT / RFA / NFT / NFA / MFL and IRIS





Benefits:



Benefit 1 - Portability & Autonomy:

The instrument weighs approximately 10 L (688 in3) in volume or 4.5 kg (9.92 lbs), making it the most compact Eddy Current Testing instrument on the market.

 It is easy to carry and very sturdy. The instrument offers over 5 hours of autonomy with no battery pack. It offers 8 hours of autonomy with a battery pack.



Benefit 2 – Built-In Versatility:

 The Sky is the limit. Use the S2G2-800 built-in capacities by combining any of the following testing technologies to meet your specific needs:

  • » Eddy Current Testing (ECT)
  • » Eddy Current Array (ECA)
  • » Remote-Field Testing (RFT)
  • » Near-Field Testing (NFT)
  • » Near-Field Array (NFA)
  • » Magnetic Flux Leakage (MFL)
  • » Internal Rotary Inspection System (IRIS)



 Benefit 3 – Signal to Noise Ratio:

 Based on a new digital technology, the S2G2 detects defaults that would otherwise remain unnoticed by other instruments available on the market thanks to our signal to noise ratio.



Benefit 4 – Motor Controller:

An embedded motor controller drives motorized vectors and controls the connected probe.



Benefit 5 – Array Technology:

The equipment drives multi-element probes in all technologies: Remote-Field, Near Field and more from the same Array connector.







AIS (ARRAY INSPECTION SOFTWARE) FOR SURFACE INSPECTIN

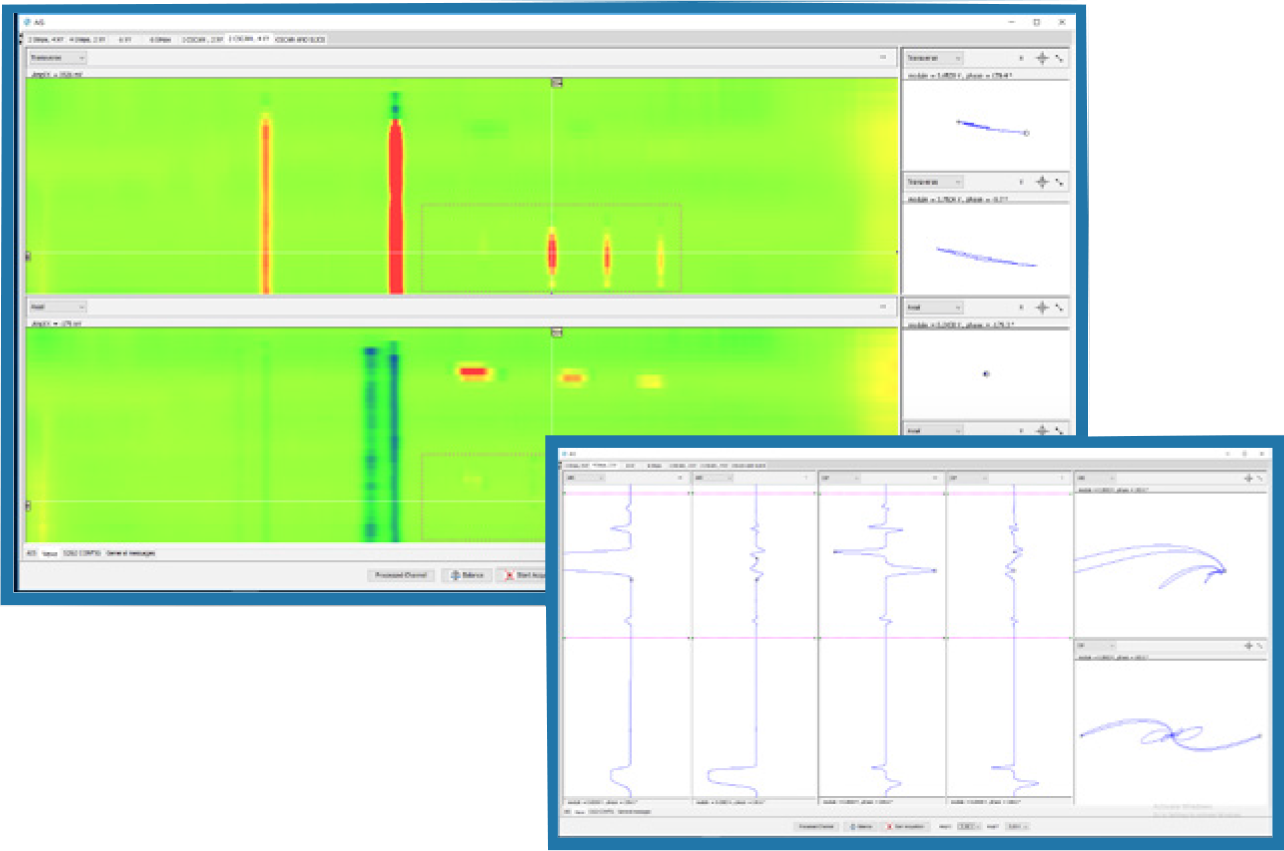

AIS Screen shot / Array ECT probes often require Multiple Cscans and AIS provides all the features required to perform a quick analysis.


















AIS Screen Shot / showing several views of the surface under inspection.



This dedicated software runs on a pc computer and it provides all tools to inspect welds or complex surface.

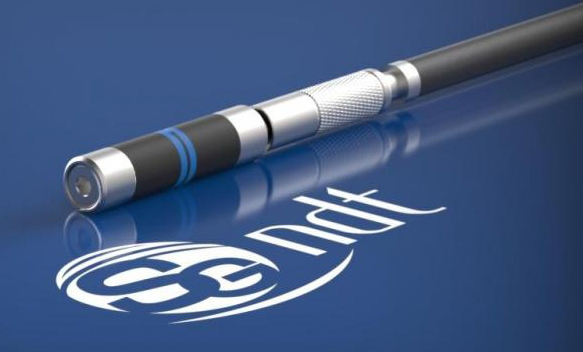

                    SGndt offers a variety of tubing probe designs and technologies to suit your inspection requirements, ensuring high-quality results.
