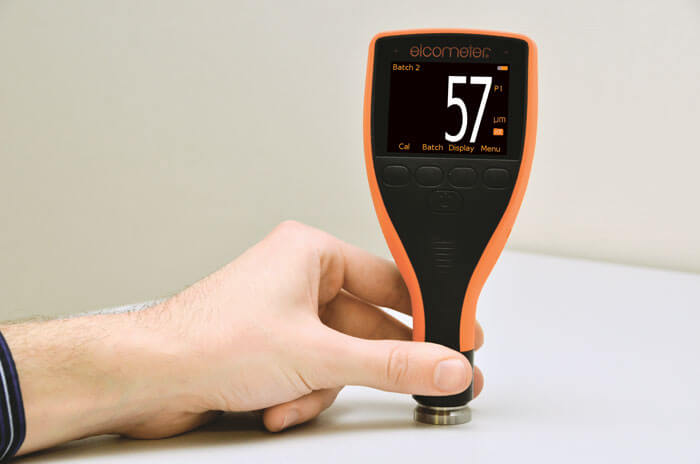

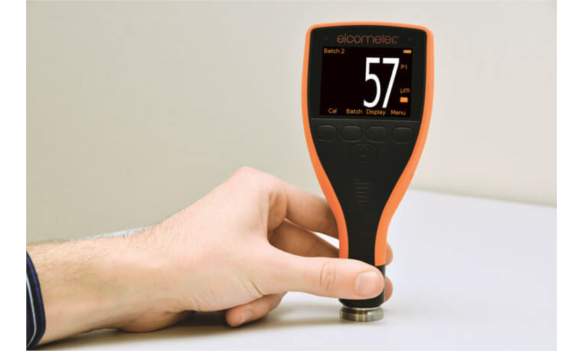

Elcometer 224 Digital Surface Profile Gauge

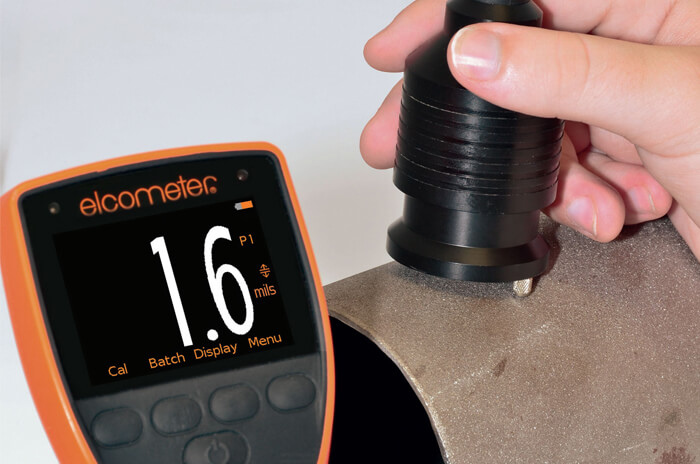

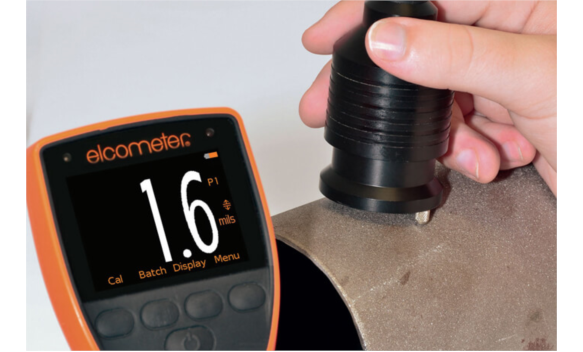

The Elcometer 224 provides the very latest in surface profile measuring technology for measuring profile on either flat or curved surfaces.

Fast, accurate and very user friendly, the Elcometer 224 Surface Profile Gauge is available with or without memory and Bluetooth®.

The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile gauge provides the user with increasing functionality - from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha-numeric batching and Bluetooth® communication.

Standard and armoured probes are available for the separate models, providing even greater measurement flexibility.  Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 508µm (20mils) and an Elcometer Test Certificate.

Download File Website Link
  • Overview
  • Downloads
  • Kit contents

Features



User Friendly

> Factory calibrated for immediate use

> High and low reading limit indicators



Accurate

> Measurement capability to ±5%

> Temperature stable measurements

> Live and batch readings graph format for instant analysis



Reliable

> Repeatable and reproducible measurements

> Batch & individual readings are date and time stamped



Tough

> Sealed, heavy duty and impact resistant

> Scratch and solvent resistant display



Efficient

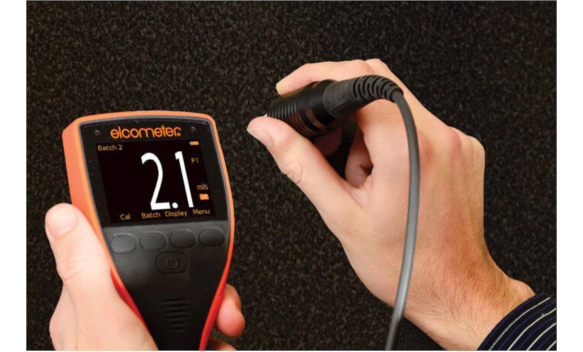

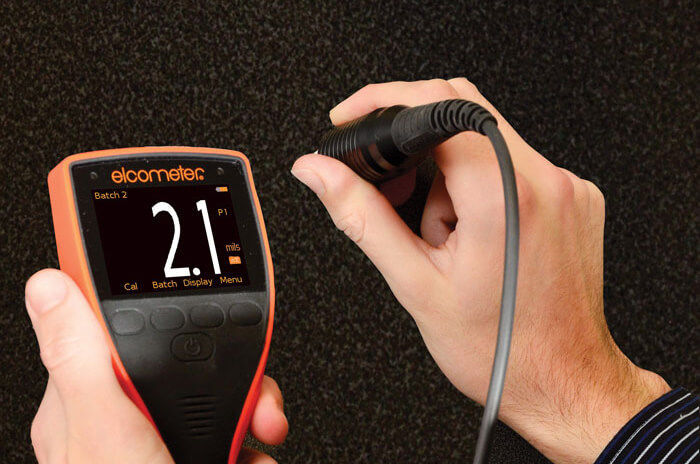

> Integral and separate probe versions to suit your application

> Compatible with ElcoMaster® and ElcoMaster® Mobile App



 Powerful

> User replaceable tough tungsten carbide tip - can be used for up to 20,000 readings

> USB and Bluetooth® data output to iPhone* or Android™ devices

> Stores up to 150,000 readings in 2,500 batches

> Measures profiles up to 500μm (20 mils)





> Protective case





> Glass Zero Tile





>
