Quick Change Probes

Quick Change probes with interchangeable wedges for weld seam testing in all common sizes and frequencies especially for the American market.

The probes are manufactured by ourselves according to specific requirements of theASTM E1065 defined by the American Welding Society. Instead of regular ceramics are used highly sensitive piezo-composites for the SONOSCAN probe series, manufacture in our own in-house production. An innovative manufacturing technology for the protective layer also helps to ensure advantageous acoustic features such as high sensitivity and low noise.

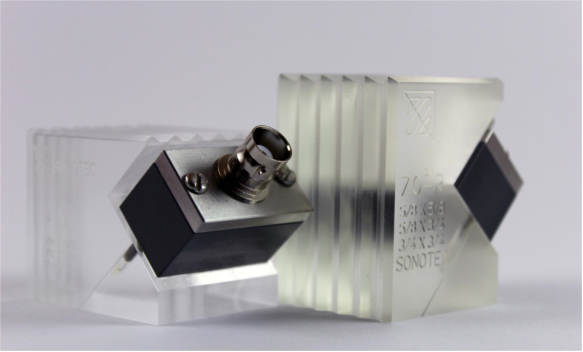

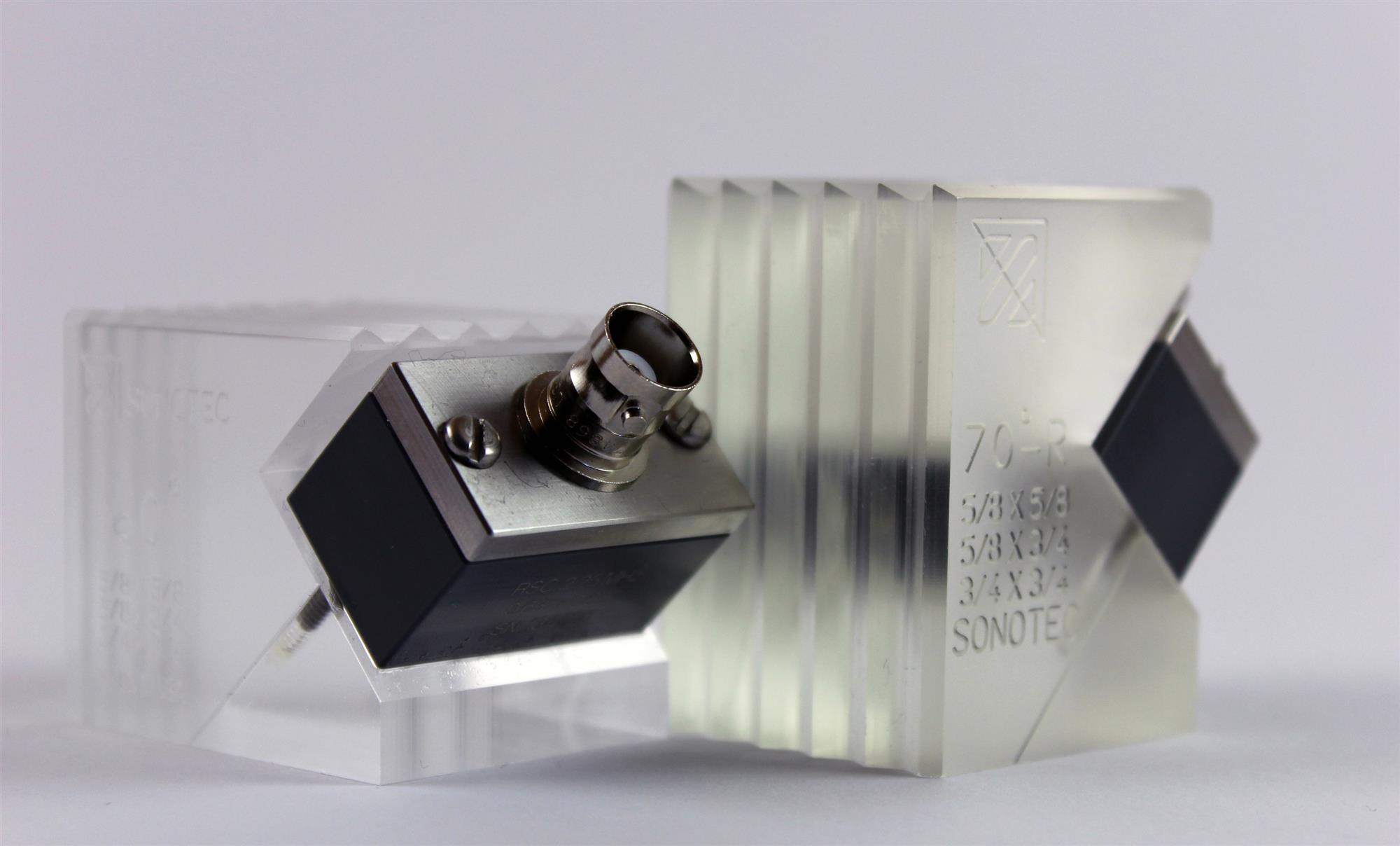

SONOTEC angle wedges as well as all common wedges can be mounted easily at the probe with the customary screw thread and can be changed quickly, if different frequencies or angles are necessary to perform an adequate evaluation of defects. Quick Change probes are used anywhere where the access to the test object is limited. In addition, the fairly small, circular transducers offer a better failure resolution.

Download File Website Link
  • Overview
  • Downloads

 SONOSCAN Quick Change Probes



According to North American Standard



Advantages:

> Excellent acoustic characteristics

> Made with highly sensitive piezo-composites

> Quickly interchangeable wedges

> Manufactured according to ASTM E1065 standard of the American Welding Society





Applications:

> Flaw detection

> Weld seam inspection

> Used anywhere where the access to the test object is limited





Types & Interchangeable Angle Wegdes



SONOSCAN Quick Change Probes according to north american standard

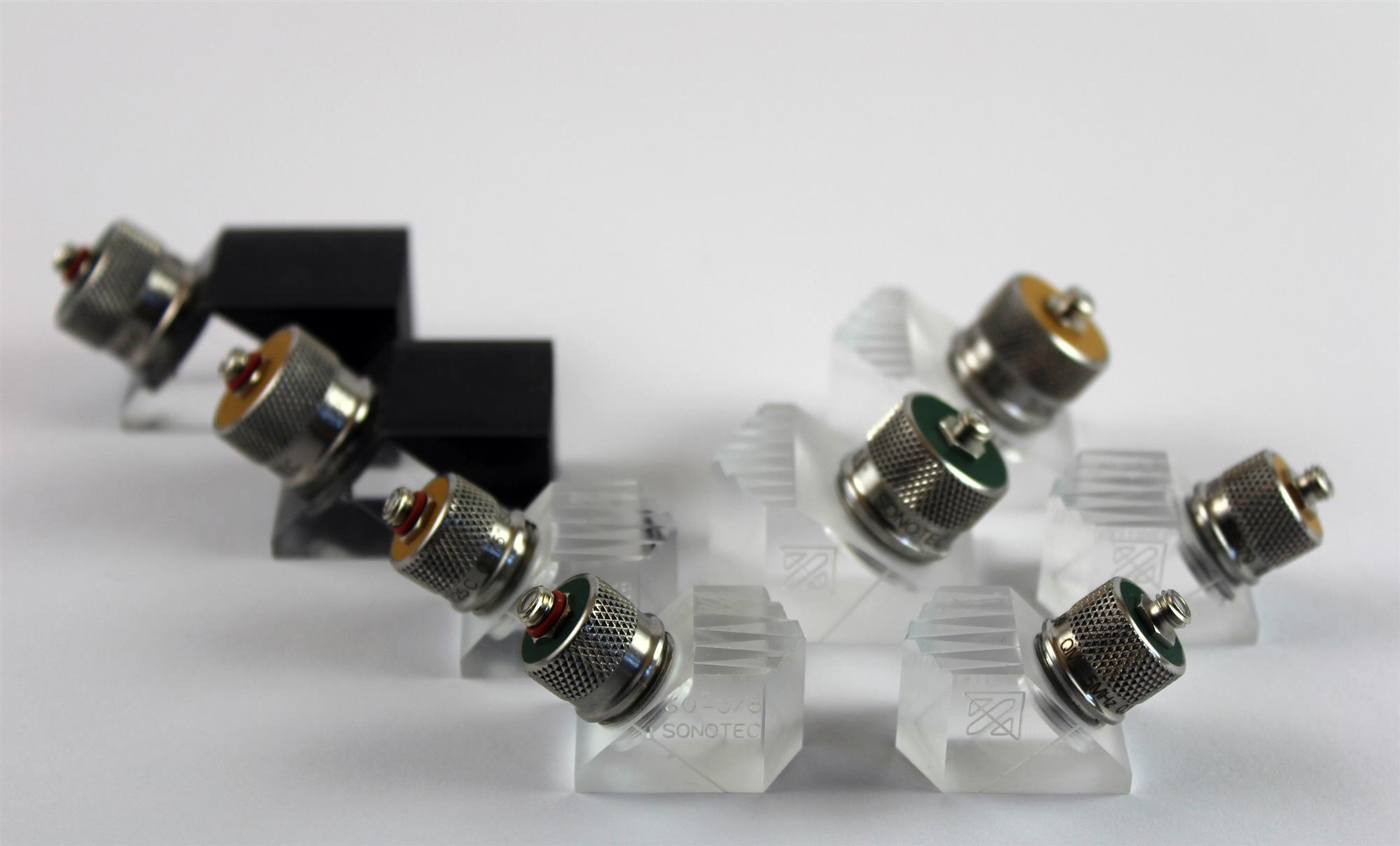

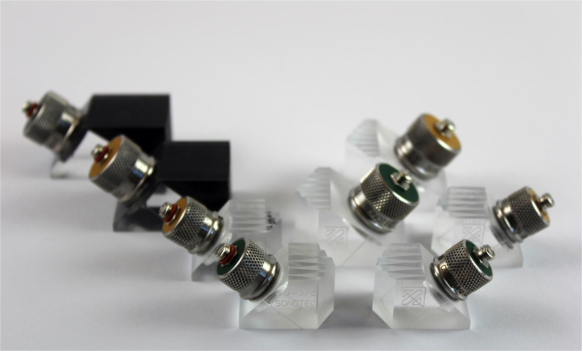

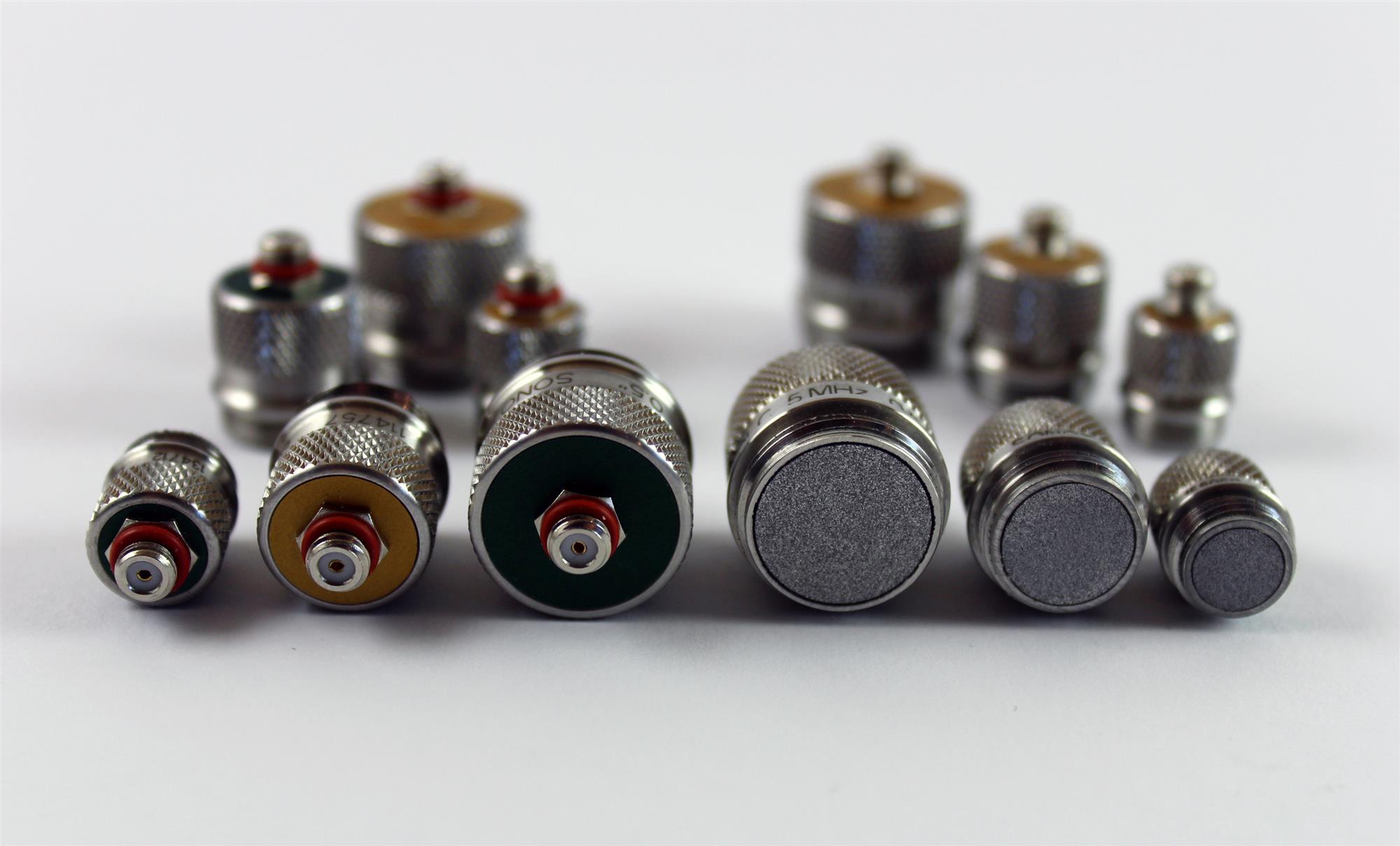

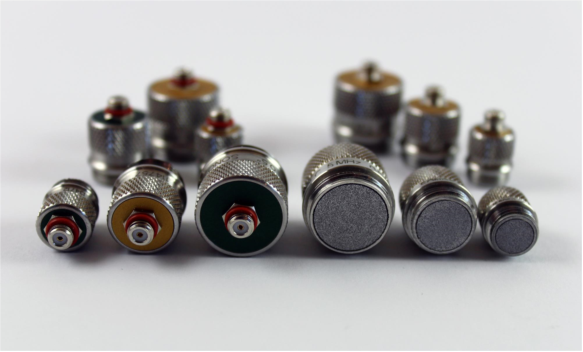

Quick Change Pulse Echo Probe SONOSCAN QSC 2.25 Ø 0.25'', 2.25 MHz, Piezo Composite, Microdot Connector
Quick Change Pulse Echo Probe SONOSCAN QMC 2.25 Ø 0.375'', 2.25 MHz, Piezo Composite, Microdot Connector
Quick Change Pulse Echo Probe SONOSCAN QLC 2.25 Ø 0.5'', 2.25 MHz, Piezo Composite, Microdot Connector
Quick Change Pulse Echo Probe SONOSCAN QSC 5 Ø 0.25'', 5 MHz, Piezo Composite, Microdot Connector
Quick Change Pulse Echo Probe SONOSCAN QMC 5 Ø 0.375'', 5 MHz, Piezo Composite, Microdot Connector
Quick Change Pulse Echo Probe SONOSCAN QLC 5 Ø 0.5'', 5 MHz, Piezo Composite, Microdot Connector

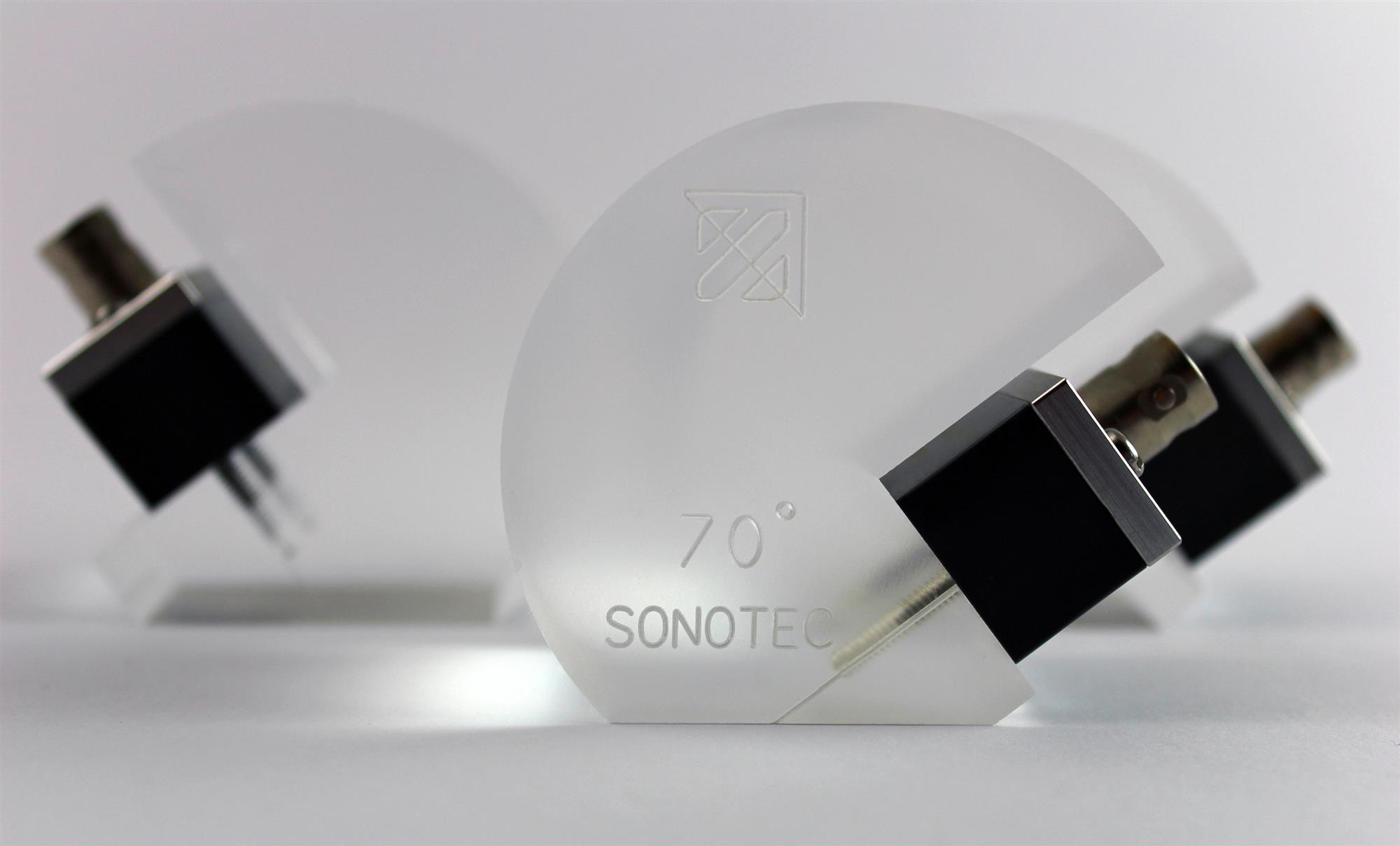

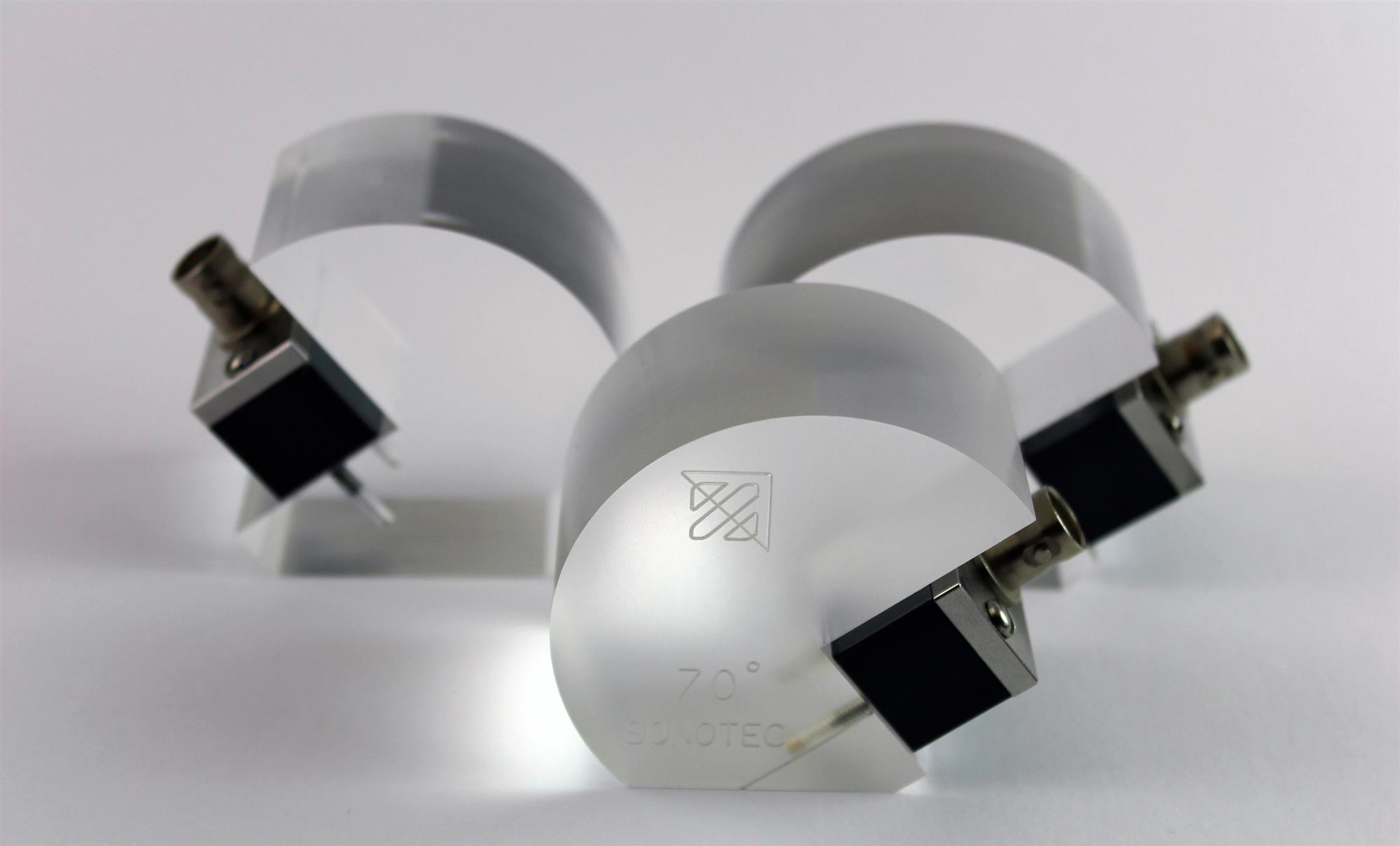

Angle Wedges for SONOSCAN Quick Change Probes

Quick Change Wedge 45° for 1/4'' Ø Transducer Size
Quick Change Wedge 60° for 1/4'' Ø Transducer Size
Quick Change Wedge 70° for 1/4'' Ø Transducer Size
Quick Change Wedge 45° for 3/8'' Ø Transducer Size
Quick Change Wedge 60° for 3/8'' Ø Transducer Size
Quick Change Wedge 70° for 3/8'' Ø Transducer Size
Quick Change Wedge 45° for 1/2'' Ø Transducer Size
Quick Change Wedge 60° for 1/2“ Ø Transducer Size
Quick Change Wedge 70° for 1/2“ Ø Transducer Size
