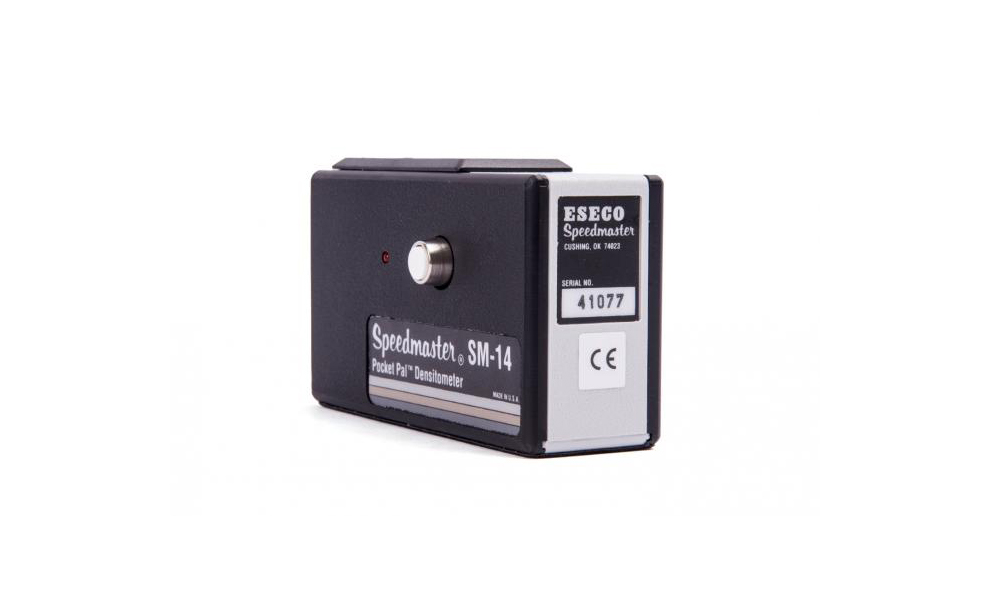

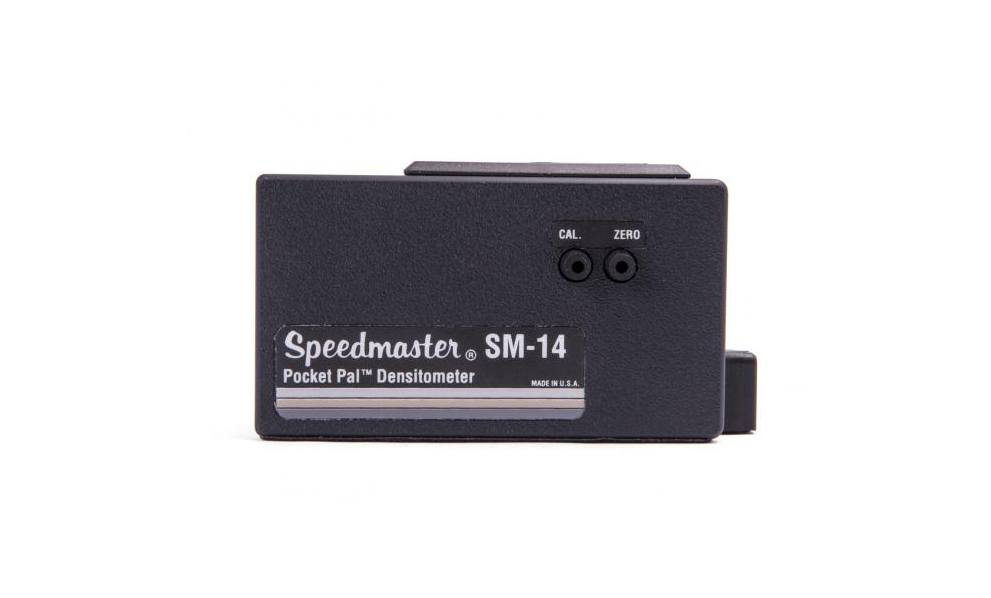

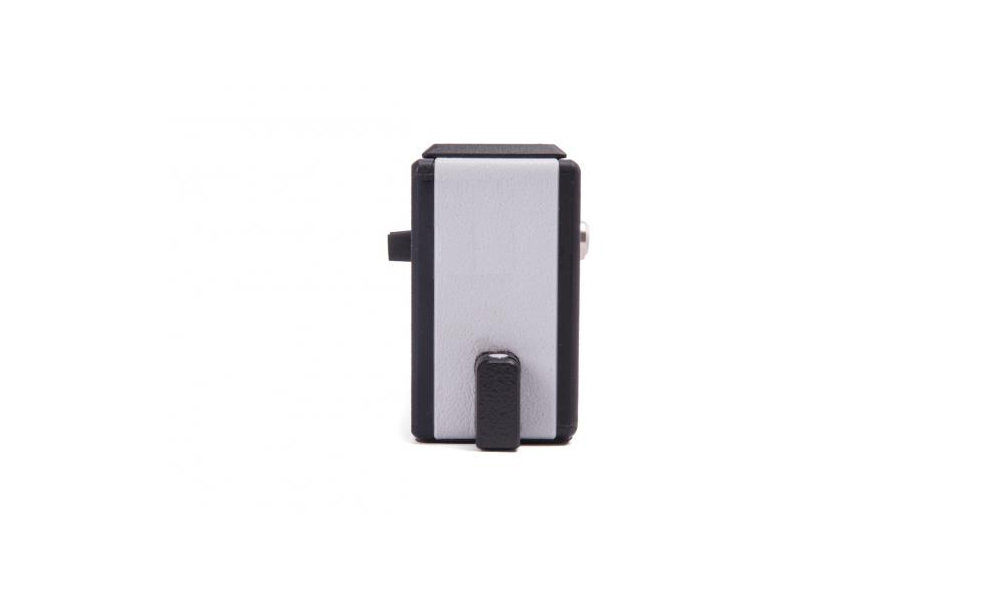

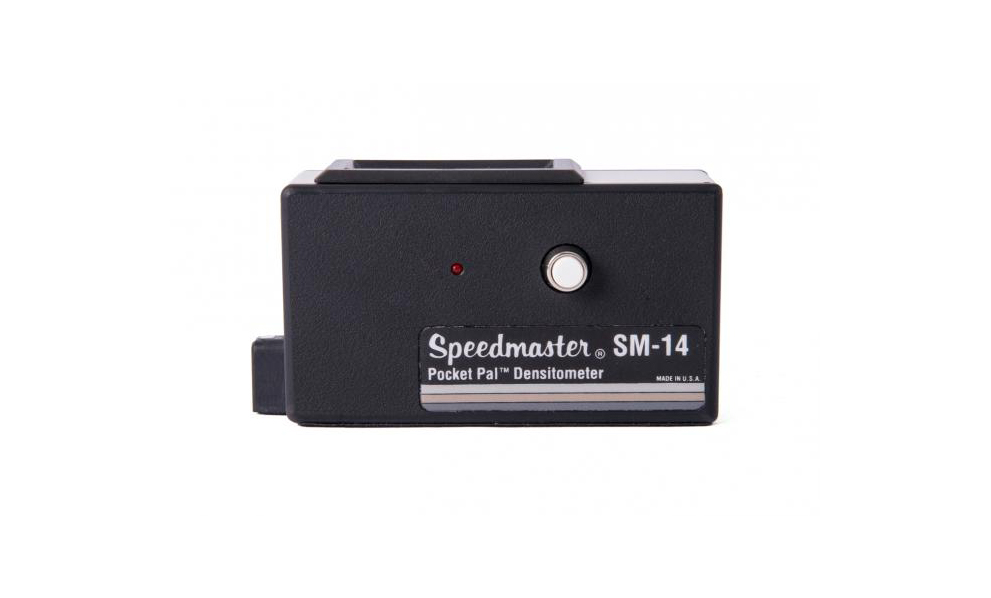

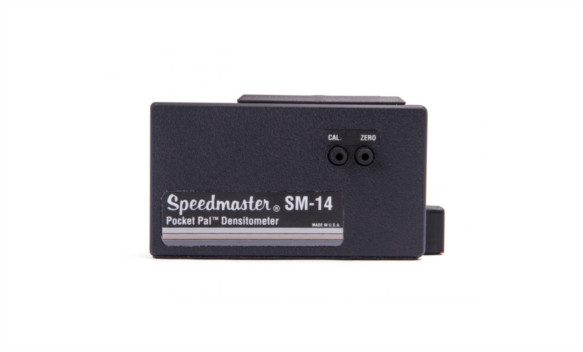

Densitometer SM-14





The Speedmaster® SM-14 Digital Densitometer is designed to meet the need for an accurate and affordably priced instrument to measure any film directly from a viewer. The benefit of over 46 years of ESECO's experience in designing and building reliable quality instruments has been applied to the portable SM-14.



The proprietary technology employed assures instant, accurate and repeatable results that rivals the same high standards of more expensive units. Featuring total accuracy of +/- .02 from 0.00 to 4.00 Optical Density.



Low power consuming components and extended battery life feature are provided in the automatic "stand-by" mode.





  • Overview
  • Technical Data
  • Downloads
  • Kit contents

Features:



rugged durability

minimal drift

no warm up time

fast dependable readings





How it works:

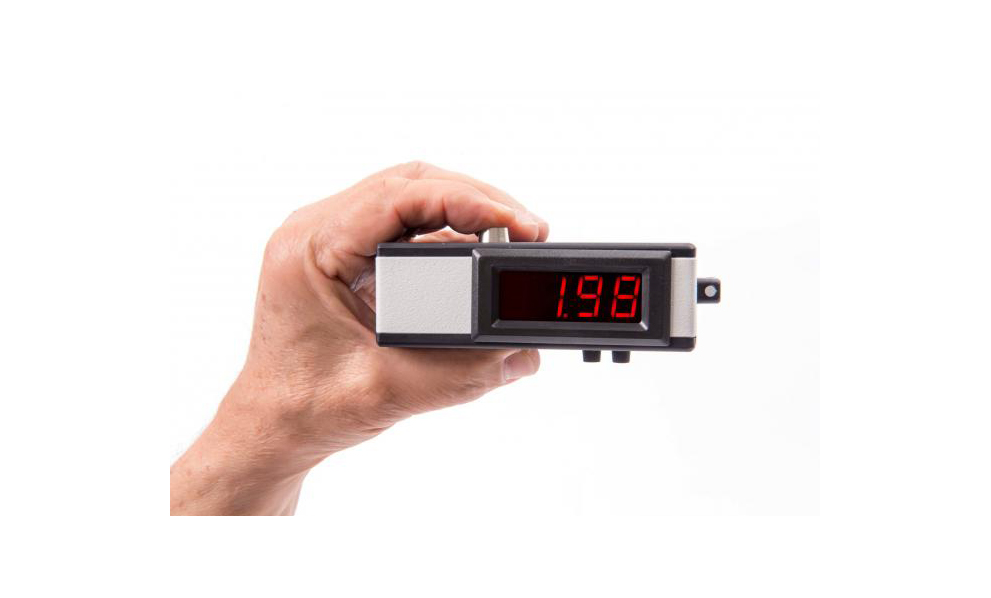

> With the film on your viewer, place the SM-14's "EASY READ" probe over the area to be read then push the read button.. The large digital meter

instantly displays the reading. It will return to the energy saving "stand-by" mode automatically.







Why you should choose?


the Speedmaster SM-14 the ideal cost-effective choice for reading film on a viewer.





Title Comments
Dimension (W x H x D) 3.81 cm X 6.35 cm X 12.06 cm
Measurement range 0.00 to 4.00 D
Accuracy: ± 0.02 D
Repeatability ± 0.01 D
Warm-up Time None
Aperture 3mm diameter
