MT Yokes

  Applications



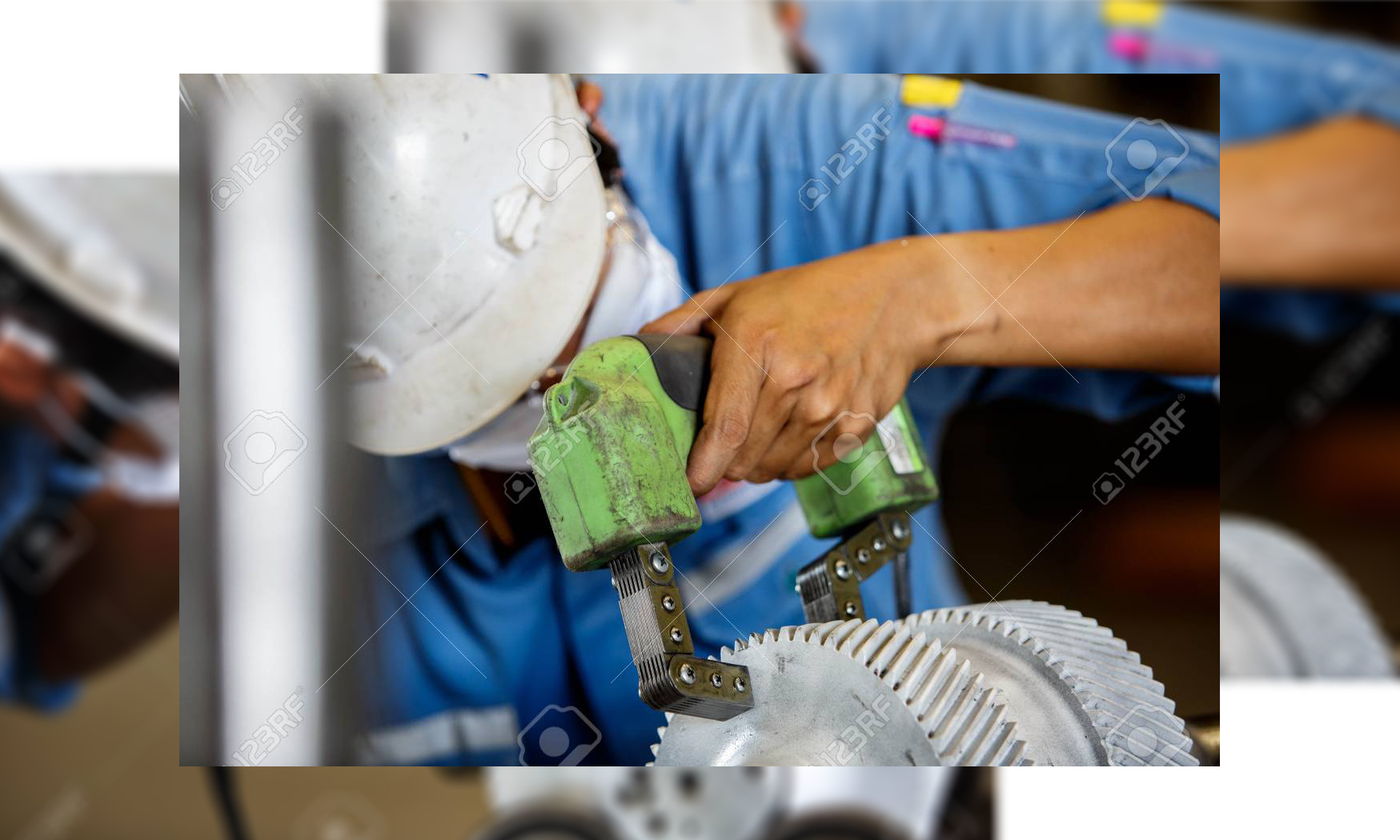

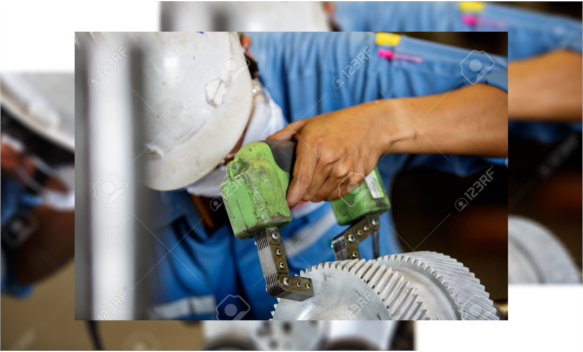

Y1 Defect location: Surface

Ideal for:


Field testing
    Difficult to reach areas
    Spot inspections
    In-service inspections
    Weld inspection



 Y7 Defect location: Surface and subsurface

Ideal for:

    Field testing
    Spot inspections
    In-service inspections
    Demanding environments
    Weld inspection
Website Link
  • Overview
  • Technical Data
  • Accessories
  • Downloads

AC Electromagnetic Yoke



The Y-1 is an AC electromagnetic yoke and the new generation of light weight, ergonomically designed yokes that improve job performance and productivity by reducing operator arm and wrist fatigue when testing in tight, confined and overhead areas. Provides a portable means of creating AC magnetic fields for the detection of surface indications during magnetic particle testing.

Lightweight, less than five pounds, and ergonomic with a molded grip and trigger on/off switch, the Y-1 has impact and chemical-resistant construction. Includes a robust strain-relieved ten-foot cord and carrying grommet for convenience in field use.

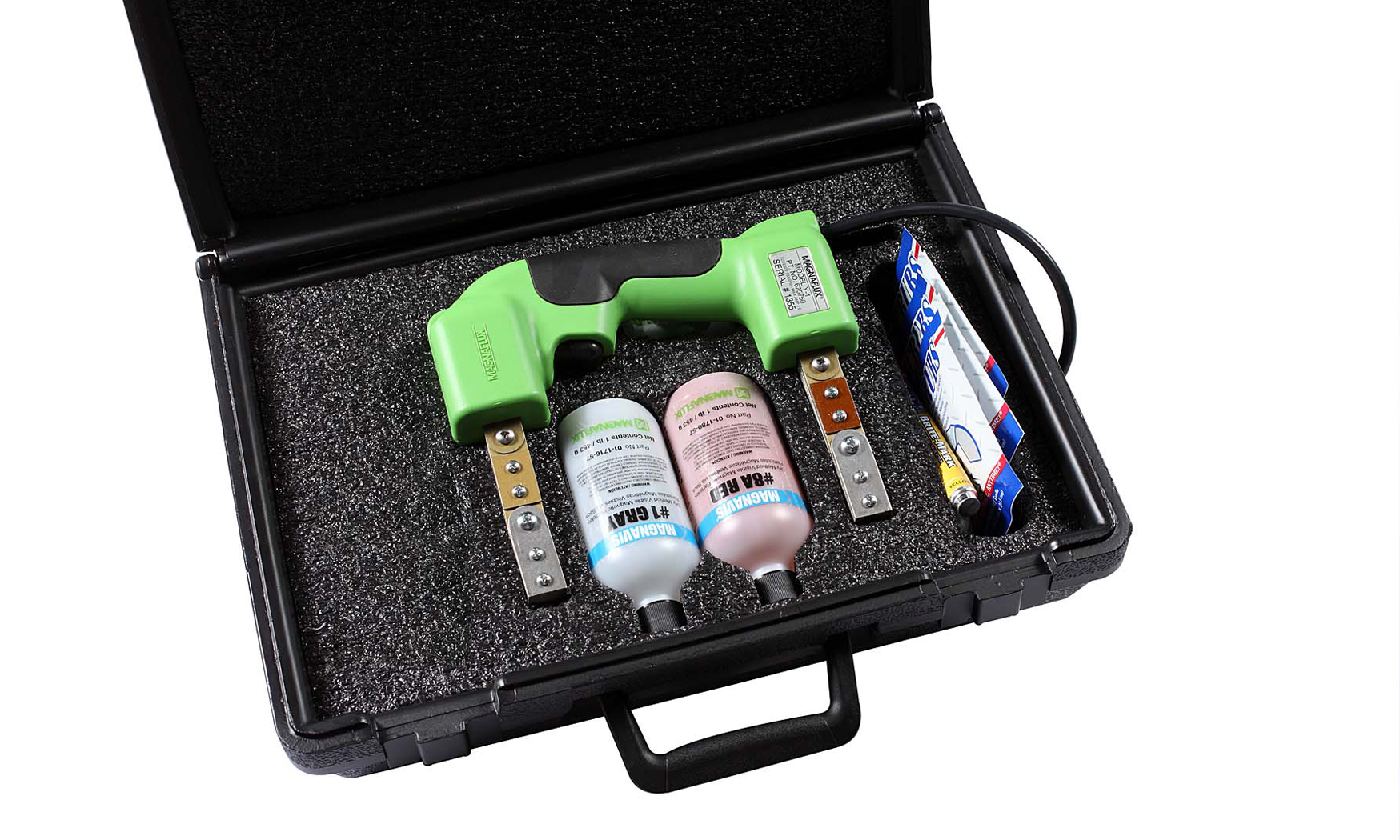

The Y-1 is also available in the Y-1 MV Kit which comes complete with a Y-1 yoke, #1 Gray and #8A Red magnetic powders, a paint marker and hand cleaner towels in a convenient carrying case.



Features

> Ergonomic, light-weight design

> Soft-grip, angled body for better positioning

> Exceeds ASTM lifting specifications

> Steel shields for leg protection

> Durable rugged construction

> Oil and abrasion resistant power cord

> Individual serial number for each yoke





AC/DC Electromagnetic Yoke

The Y-7 is a durable, high-strength AC/DC magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.

Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the Y-7 is ideal for inspection of welds and other remote testing.

Solid-state controls allow the operator to use AC magnetic fields for surface indications or DC magnetic fields for sub-surface indications to meet all inspection needs.

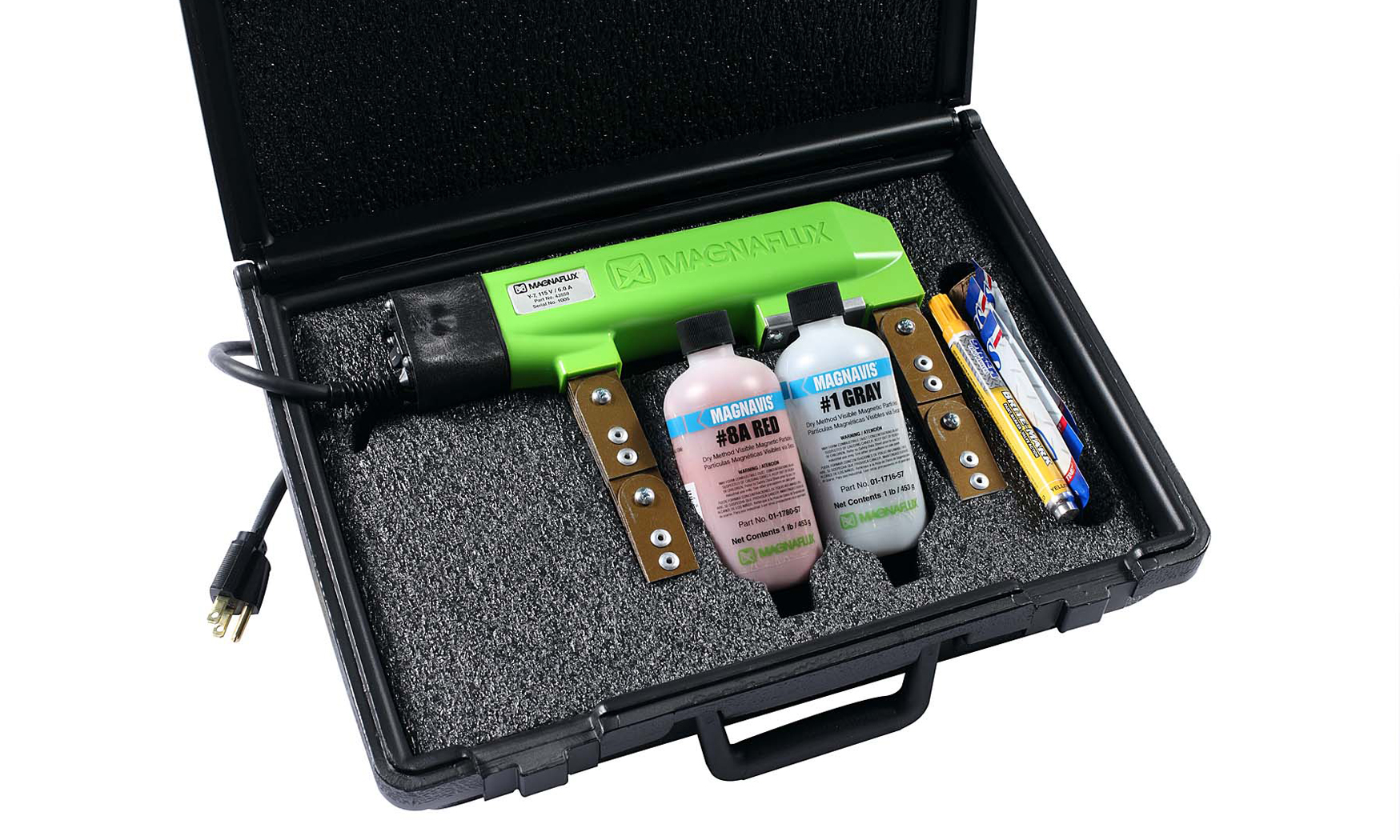

The Y-7 is also available in the Y-7 MV Kit which comes with a Y-7 yoke, #1 Gray and #8A Red magnetic powders, a paint marker and hand cleaner towels in a convenient carrying cas



Features

> Sealed, durable construction

> Chemical and abrasion resistant

> AC and DC operation options for surface and sub-surface inspection

> Exceeds ASTM lifting specifications

> Individual serial number for each yoke

Title Comments
Weight 115V: 7.4 lb / 3.4 kg ,230V: 7.2 lb / 3.3 kg
Leg Span 0–12 in / 0–30 cm
Cord Length 12 ft / 3.7 m
Duty Cycle 33%, max on time is 80 seconds
Electrical Requirements 115V - 60 Hz: 6.0 A 230V - 50/60 Hz: 2.7 A
