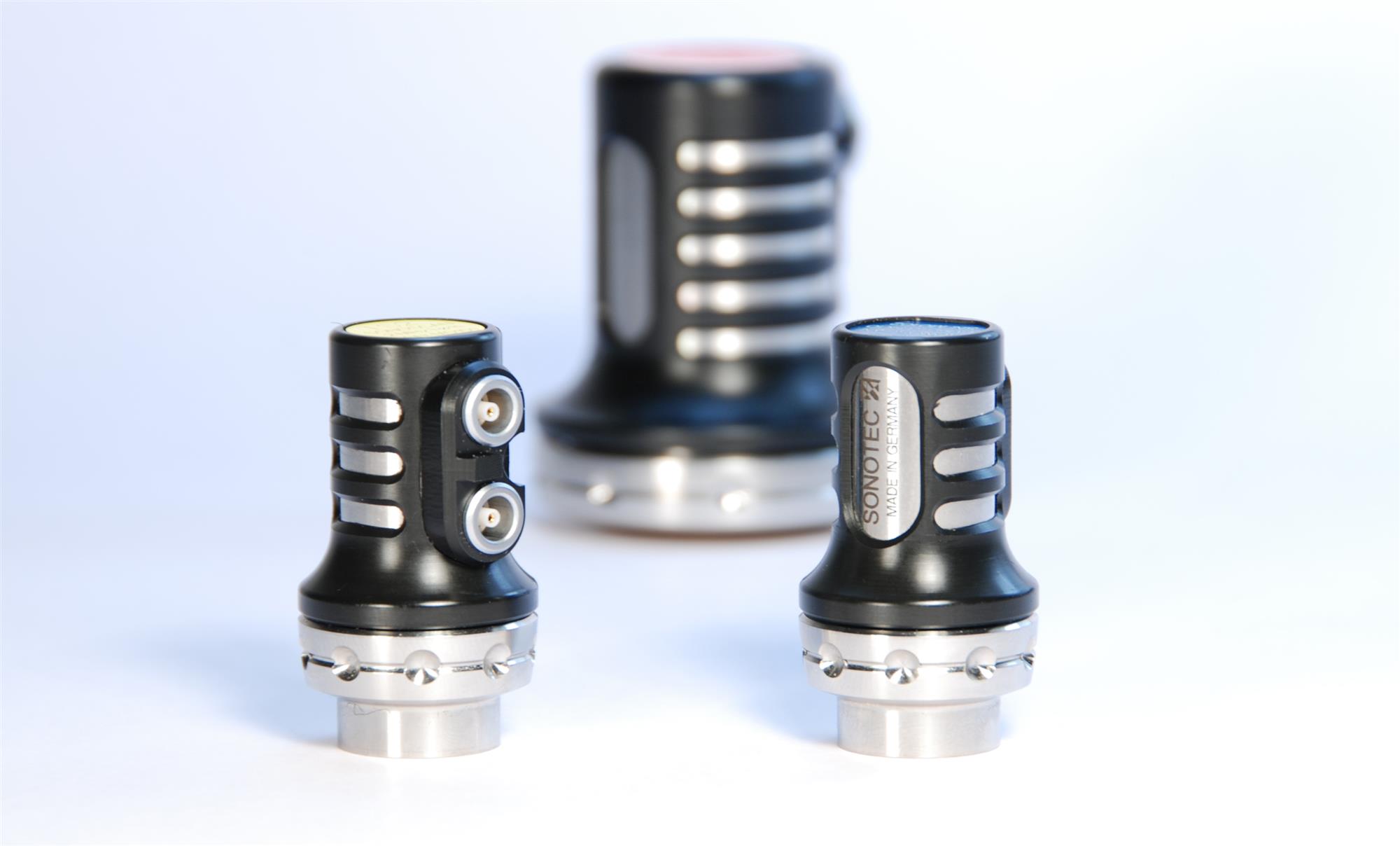

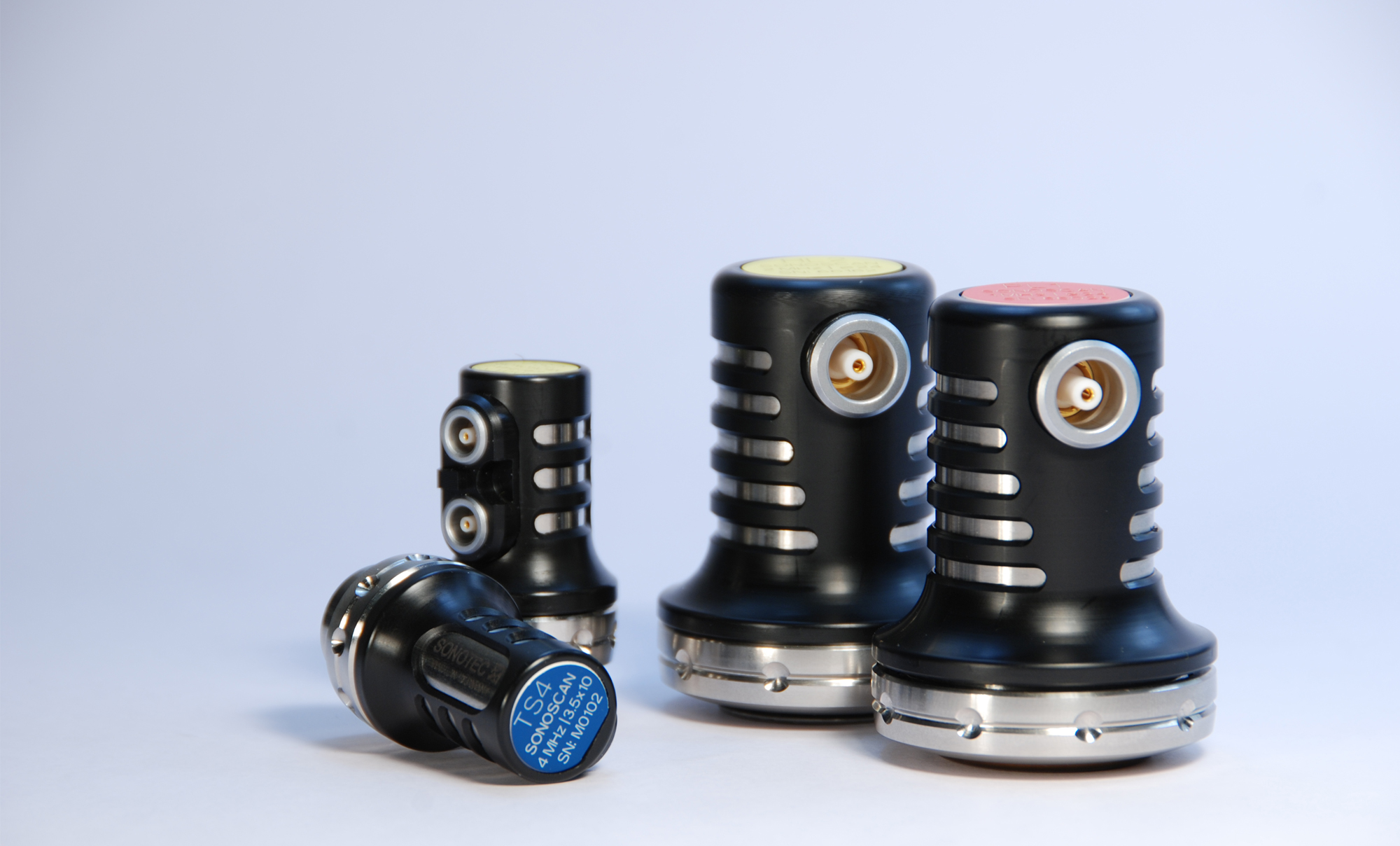

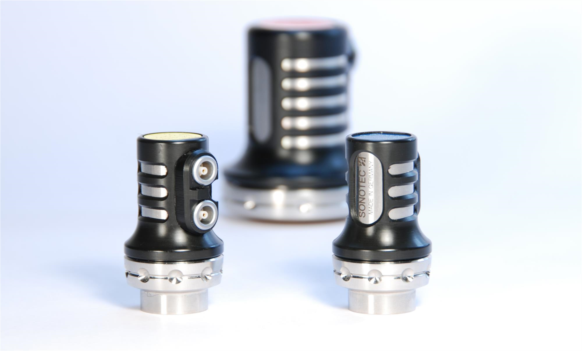

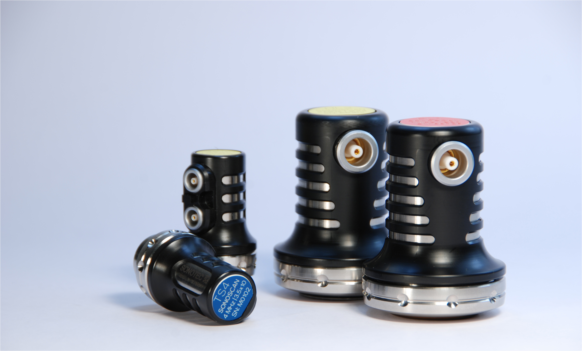

SONOSCAN Straight Probes

The ergonomic straight beam probes of the SONOSCAN series for Nondestructive Testing (NDT) comply with the European Standard DIN EN 12668-2. They are used to check metals, plastics and ceramic materials for discontinuities, such as cracks, inclusions, blowholes and other material flaws.

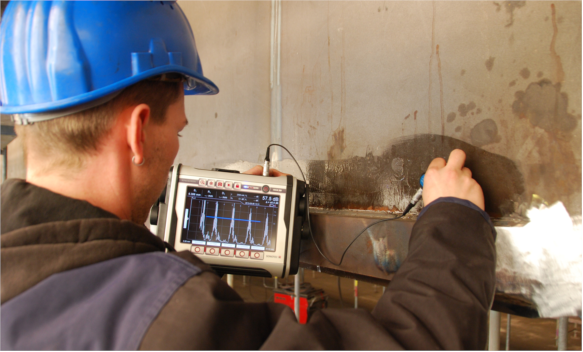

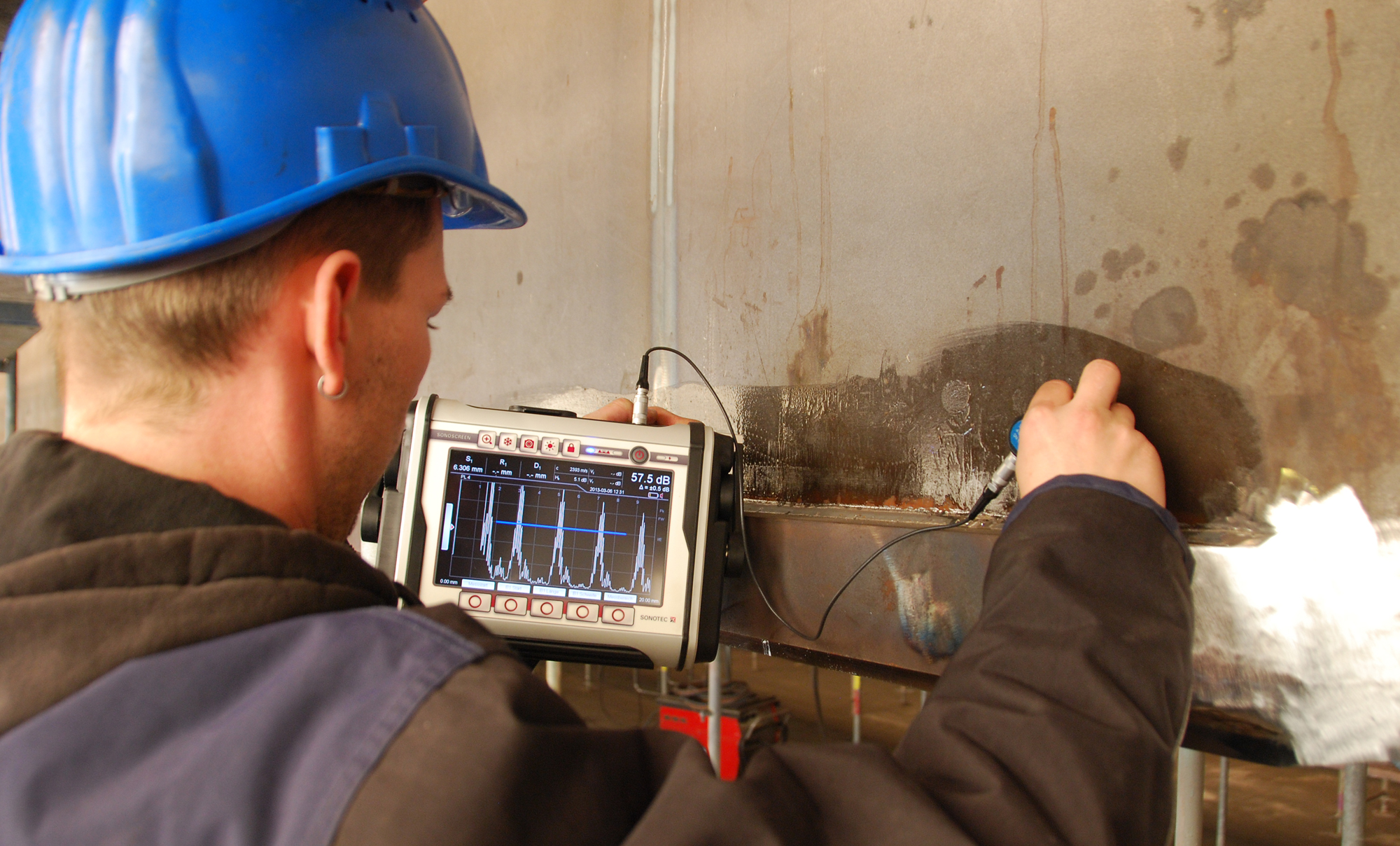

The pulse echo and dual element probes “Made in Germany” are powerful, robust ultrasonic transducers, which are compatible to the new ultrasonic flaw detector SONOSCREEN ST10, developed by SONOTEC as well, and common mobile ultrasonic test equipment.

We offer our precise ultrasonic probes with different frequencies and transducer sizes. Choose the most suitable probe for your application, depending on material characteristics, thickness and geometry of the work piece.

Download File Website Link
  • Overview
  • Downloads
  • Kit contents

 Features:



> Excellent acoustic characteristics

> Unique ergonomic design ensures ease of use and effortless working

> Suitable for DGS evaluation

> Made in Germany



Applications:

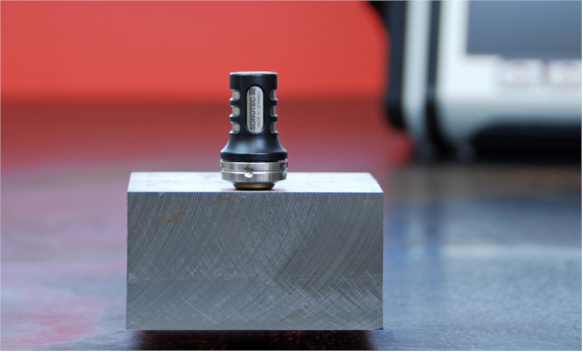

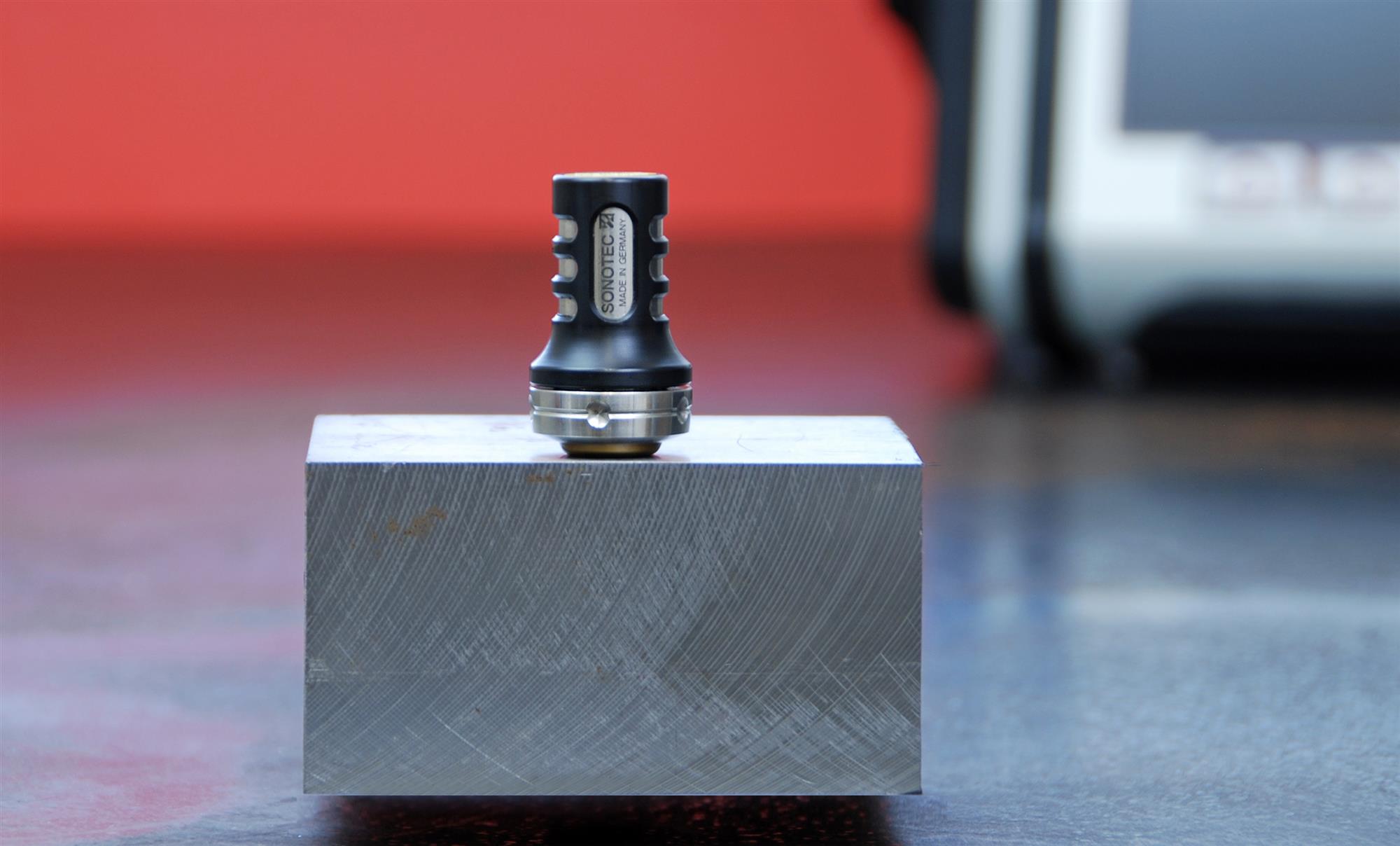

> Straight beam flaw detection and wall thickness measurement

> Materials: metals, plastics and ceramics

> Inspection of pipes, plates, billets, castings and forgings

> Testing of pipes and bars

> Detection of delaminations





Pulse-Echo Probes (European Standard)

Pulse Echo Probe SONOSCAN PL1 EN Ø 24 mm, 1 MHz, with Protection Membrane, Lemo-1 Connector
Pulse Echo Probe SONOSCAN PS2 EN Ø 10 mm, 2 MHz, with Protection Membrane, Lemo-00 Connector
Pulse Echo Probe SONOSCAN PL2 EN Ø 24 mm, 2 MHz, with Protection Membrane, Lemo-1 Connector
Pulse Echo Probe SONOSCAN PS4 EN Ø 10 mm, 4 MHz, with Protection Membrane, Lemo-00 Connector
Pulse Echo Probe SONOSCAN PL4 EN Ø 24 mm, 4 MHz, with Protection Membrane, Lemo-1 Connector
Pulse Echo Fingertip Probe SONOSCAN PXS10 EN Ø 8 mm Contact Face with Delay Line,10 MHz, Microdot Connector



SONO-ID Probes for SONOWALL 70

Pulse Echo Wall Thickness Probe

SONOSCAN PS2i EN

Ø 10 mm, 2 MHz, with Protection Membrane, Lemo-00 Connector, SONO-ID tag for

intelligent probe recognition and data memory via SONOWALL 70

Pulse Echo Fingertip Probe

SONOSCAN PXS10i EN

Ø 8 mm contact face with with delay line,10 MHz, Microdot Connector, SONO-ID tag for

intelligent probe recognition and data memory via SONOWALL 70



> Lemo 0 - Lemo 1 cable





> TPC-ZZ Cable





>
