SONOFLAW

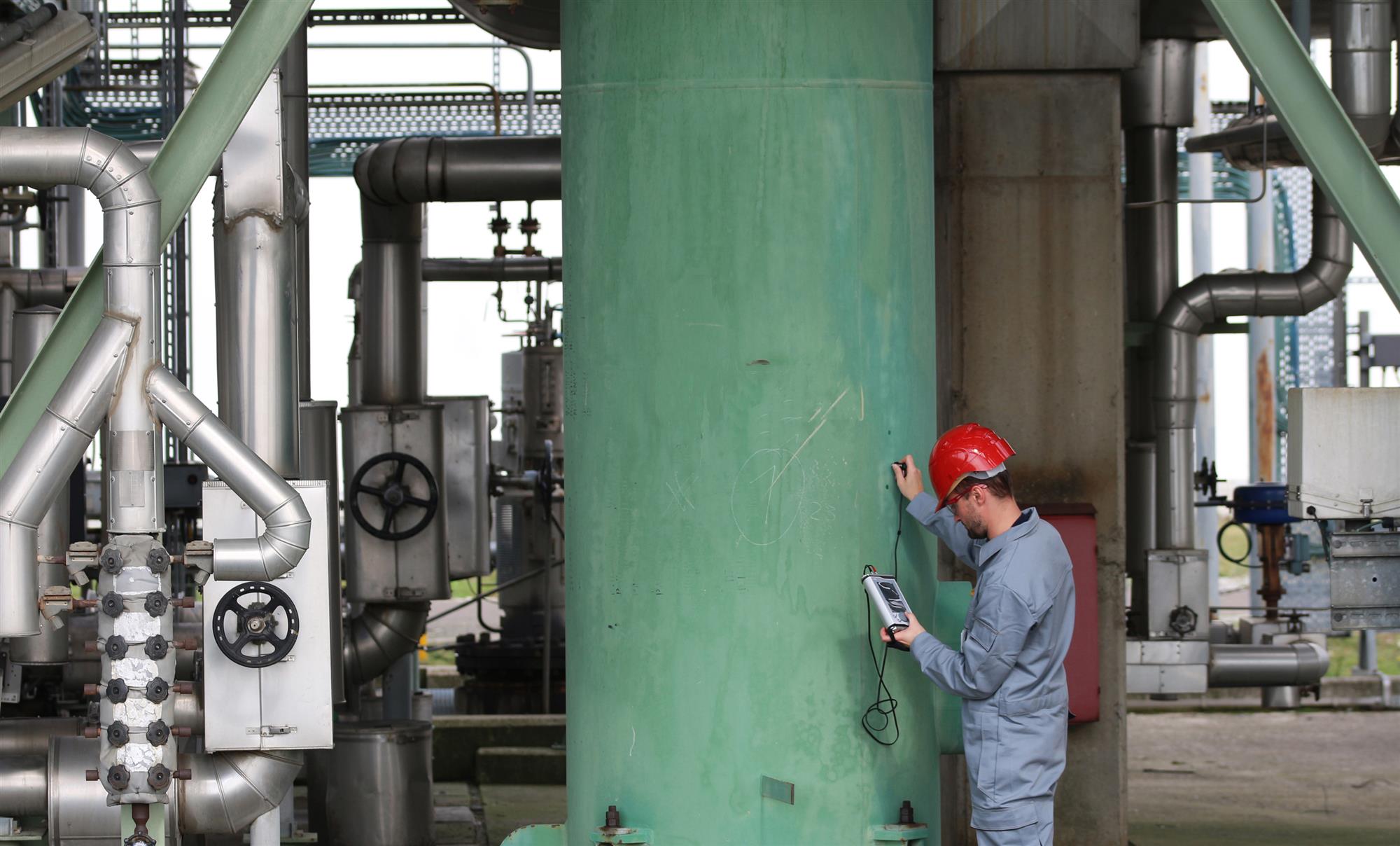

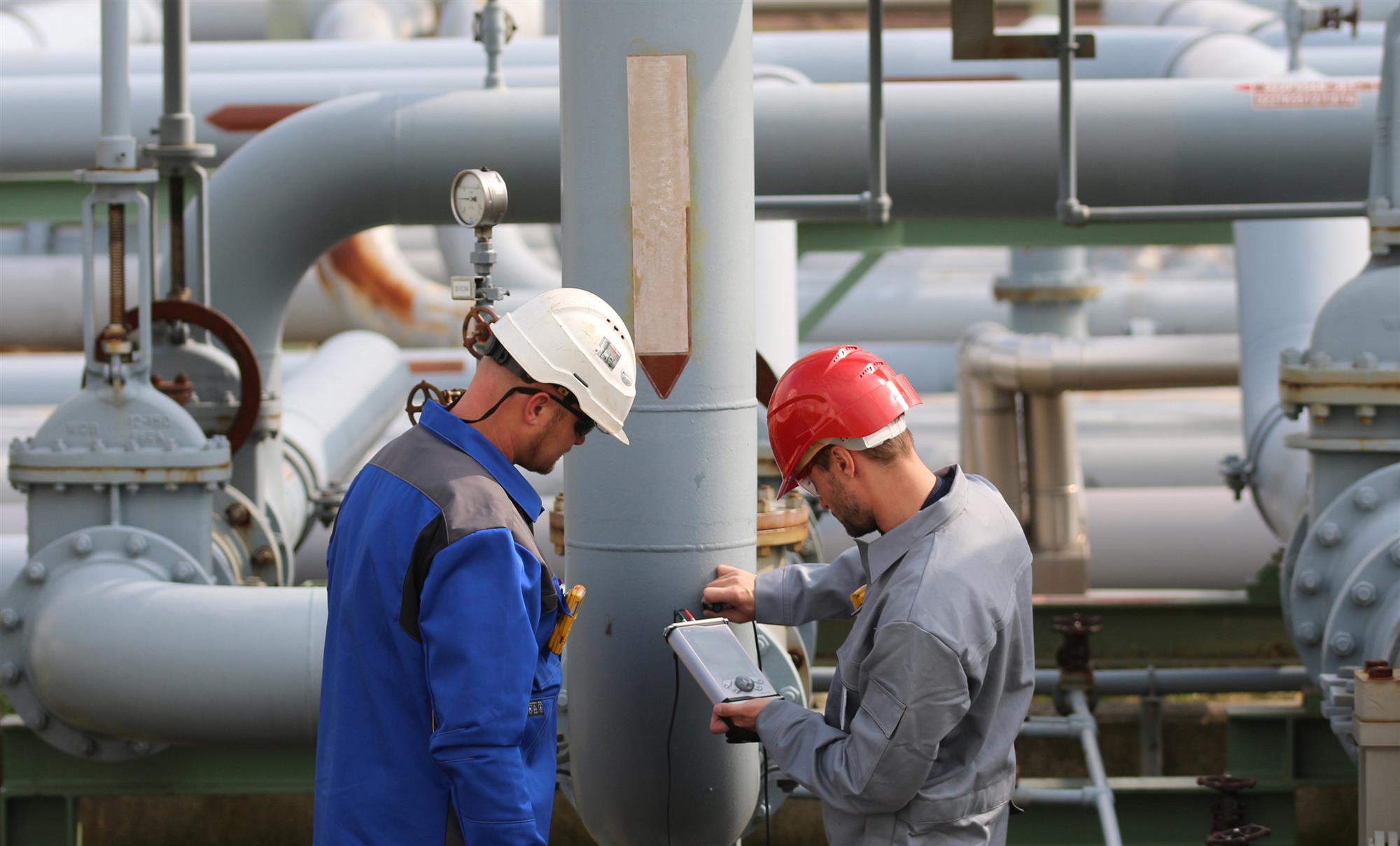

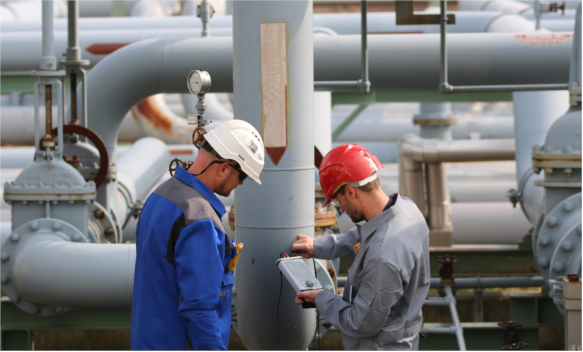

Applications of ultrasonic testing vary, ranging from weld inspection to wall thickness measurement and the detection of discontinuities such as invisible cracks, inclusions, voids and other discontinuities in metals, plastics, ceramics and composites.

Experienced material testers have supervised the development of SONOTEC flaw detector and probes focusing on simple operation procedures and high sensitivity while simultaneously providing a robust design.

We offer a wide range of corresponding SONOSCAN probes. Select the suitable probe from our product program according to your application.

In addition to our standard products, we also manufacture customer-specific solutions.



Website Link
  • Overview
  • Technical Data
  • Kit contents

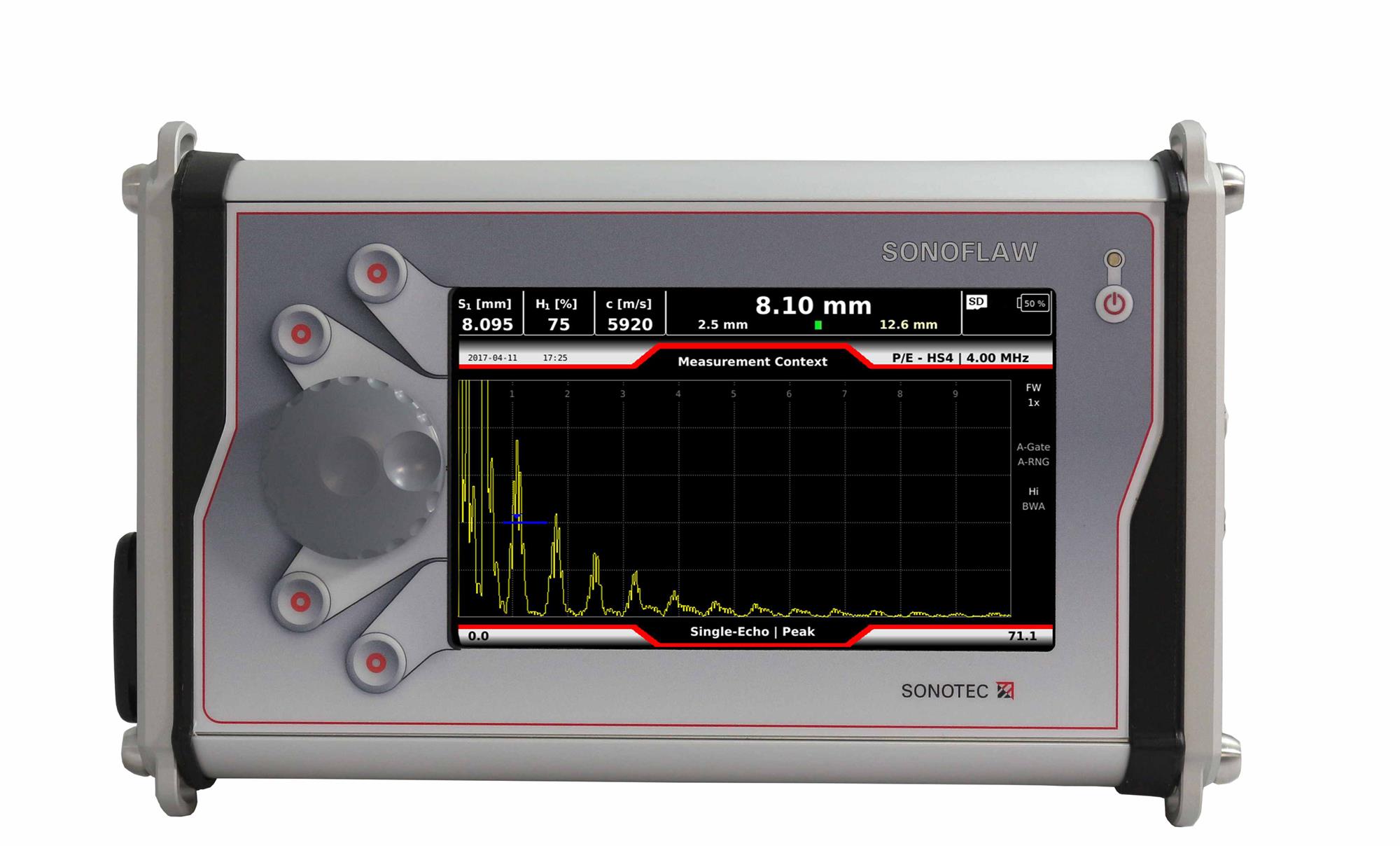

The new Flaw Detector is perfectly suited for various ultrasonic thickness and ultrasonic flaw detector applications . The robust aluminium casing with IP 67, a light weight of only 990g and high resolution anti-glare 5-inch graphic display make the SONFLAW the ideal gage in harsh test environments.

Intuitive operation

In addition to high performance, the focus during the development for this new thickness gage was on intuitive handling and clear display of measurement results. An intuitive user interface, clearly structured menu, and the presentation of all menu items in full text simplify and accelerate the set-up and opertation of the device, and reduce the risk of incorrect settings.

All relevant measurement values and device settings such as wall thickness, A- or B-Scan, and individually adjustable test parameters are apparent at a glance on the large display screen (800x489).

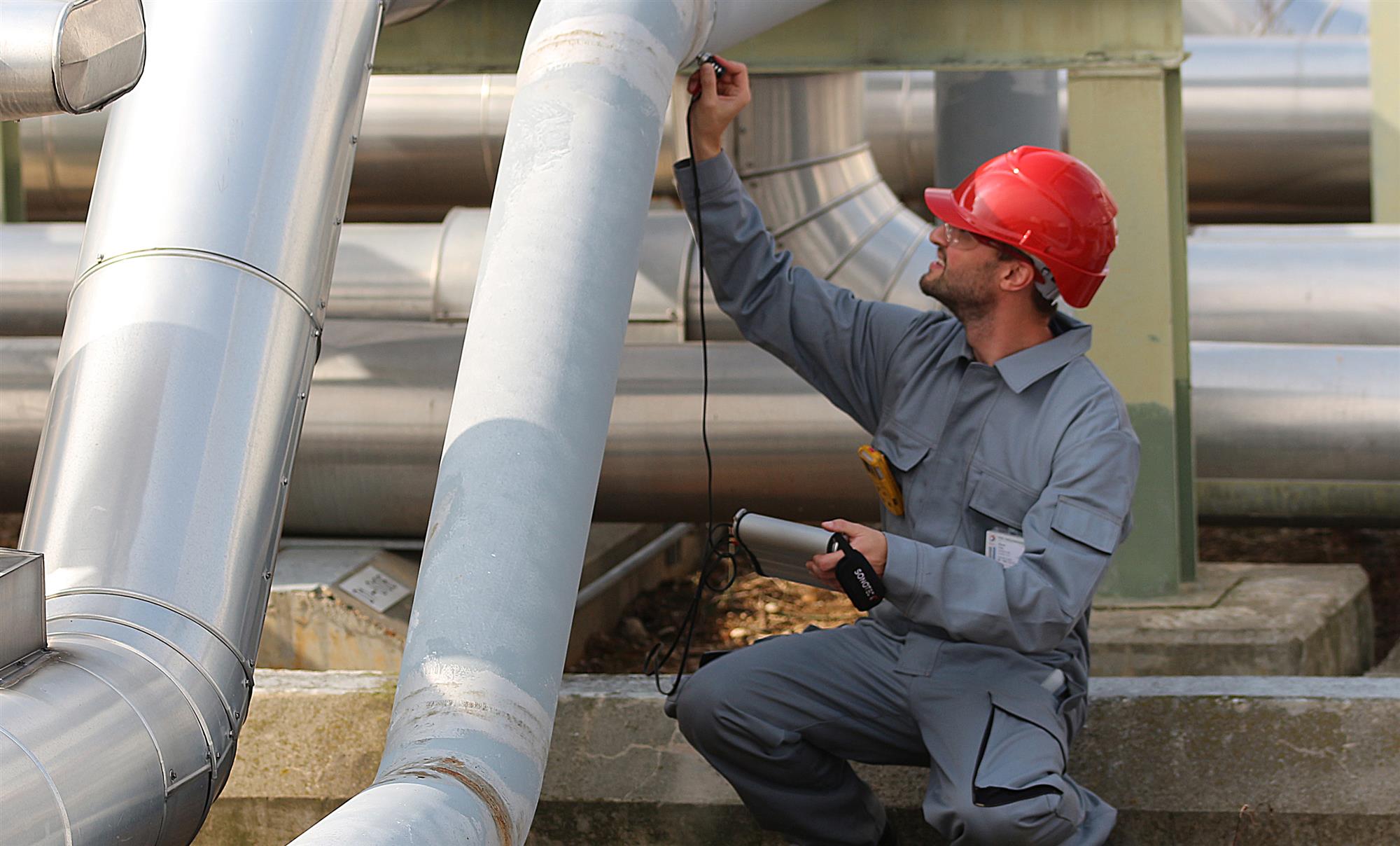

Thanks to the innovative flip-screen technology, the device can be used with either hand for convenient working.





> Protective working case





> Transportation and storage case





> oil couplant
