Guided Wave (LRUT)

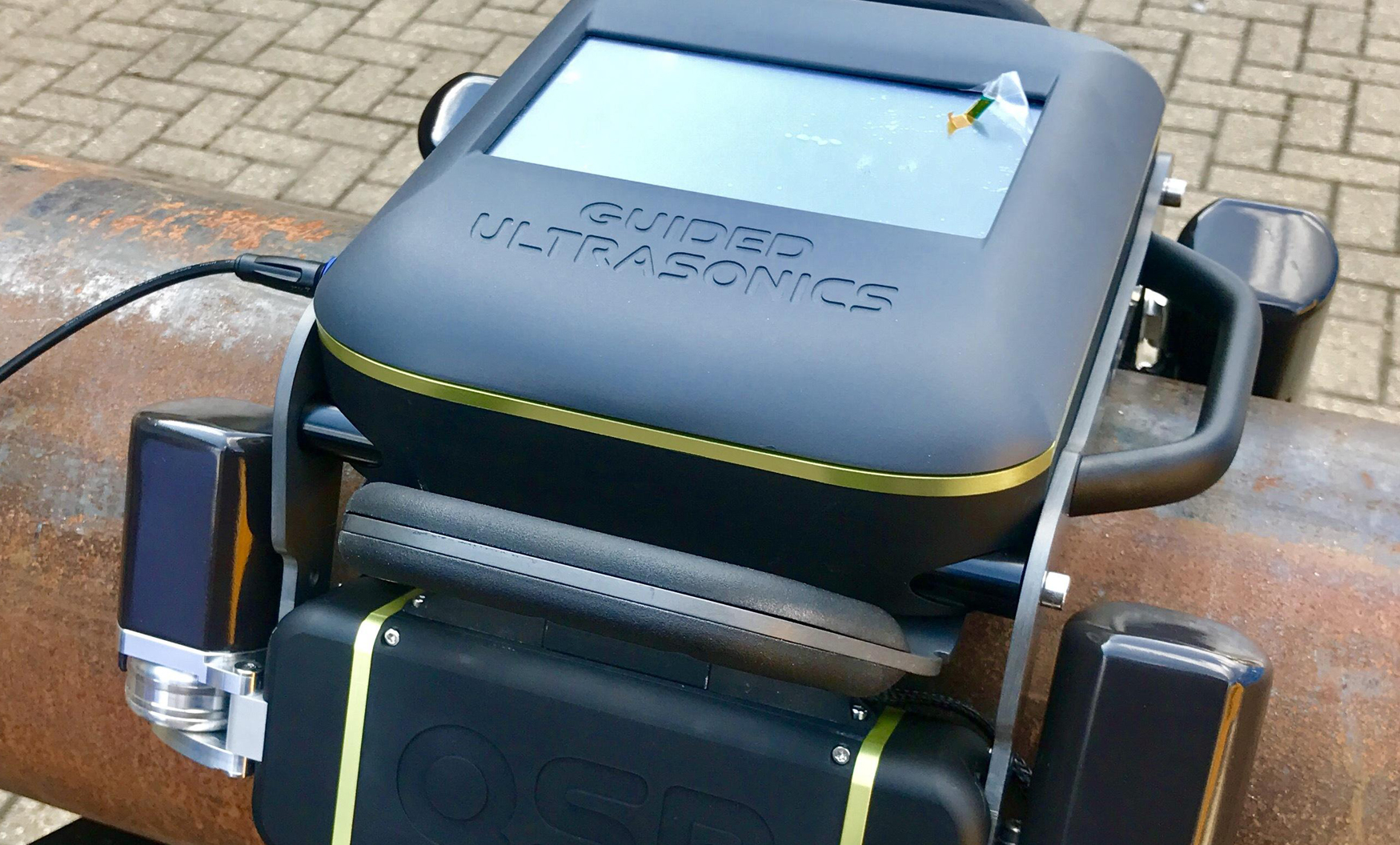

The QSR1® is GUL’s new quantitative short range (QSR) device, incorporating the latest guided wave technology and hardware.

The system is designed to semi‑automatically scan predefined sections of straight pipelines for corrosion under pipe supports (CUPS).

The QSR1® can provide a quantitative measure of the average wall, as well as the remaining wall thickness down to half of the nominal wall thickness.

This instrument is suitable for motorised guided wave scanning on predefined sections of straight pipelines, with the added compatibility to operate with GUL’s cloud‑based platform.

Download File Website Link
  • Overview
  • Technical Data
  • Downloads
  • Kit contents

The QSR1® is GUL’s new quantitative short range (QSR) device, incorporating the latest guided wave technology and hardware.

The system is designed to semi‑automatically scan predefined sections of straight pipelines for corrosion under pipe supports (CUPS).

The QSR1® can provide a quantitative measure of the average wall, as well as the remaining wall thickness down to half of the nominal wall thickness.

This instrument is suitable for motorised guided wave scanning on predefined sections of straight pipelines, with the added compatibility to operate with GUL’s cloud‑based platform.







     Lightweight      Automated Scanning      Operator Identification   Battery Operation

     Robust Design      Extended Frequency Range      Built‑In GPS      7" LCD Touch Screen



















Quantitative Measurement of Corrosion Under Support

QSR® automatically measures the size of corrosion to the depths of up to half of the pipe wall thickness.

QSR® also automatically measures pipe diameter and pipe wall thickness around the pipe circumference from a single location in a fraction of a second.


Title Comments
Operating temperature -20° to +70°C (0 to 160°F)
Nominal Pipe Sizes 8" to 16" (DN 200 to 400)
Thickness 6mm to 12.5mm (¼" to ½")
Clearance Varies according to diameter. Special frames available for limited clearance.

> Software Licence





> Mains Charger





> USB Cable





> Ethernet Cable
