SONOSCAN Angle Probes

Our ergonomically-designed angle beam probes for non-destructive testing (NDT), part of the SONOSCAN probe series, are designed to check for cracks and occlusions in metals. They are used primarily in the metalworking industry for the inspection of weld seams. SONOSCAN probes are efficient, robust ultrasonic transducers that can be used in conjunction with all standard ultrasonic testing devices.

Due to their variety of design and size, our probes are optimally suited for a multitude of applications. Looping-in of the probe enables it to be adapted and used for curved surfaces, for example for various types of pipeline. The unique and practical ergonomic design of our angle beam probes enables comfortable and convenient use.

In addition to our standard products, we can also manufacture customer-specific solutions.

Download File Website Link
  • Overview
  • Downloads

 Features:



> Excellent acoustic characteristics

> Compatibility with standard ultrasonic testing devices

> Unique ergonomic design and ease of use

> Customer-specific adaptation possible



Applications:



> Flaw Detection

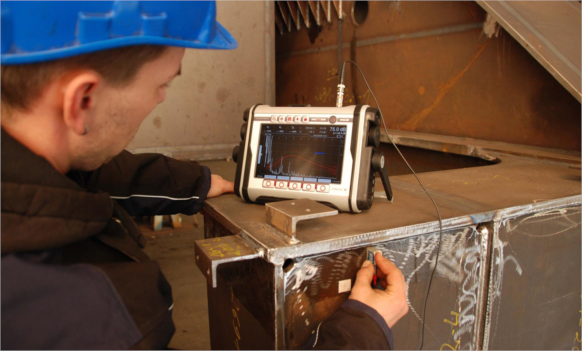

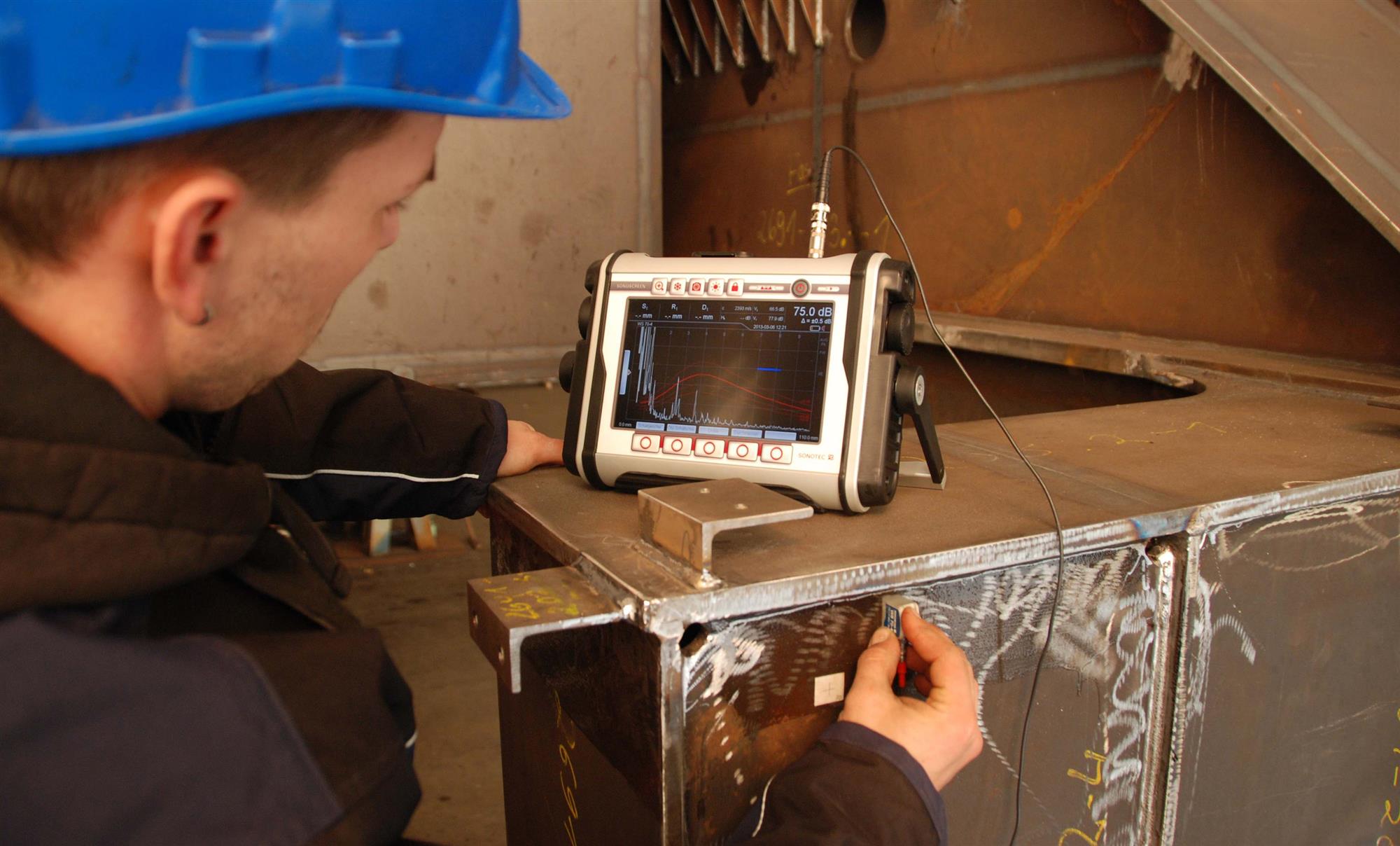

> Weld inspection in metal industries





SONOSCAN Angle Beam Probes

Angle Probe SONOSCAN WS 45-2 EN 45°, 2 MHz, 8 x 9 mm, Lemo-00 Connector
Angle Probe SONOSCAN WS 60-2 EN 60°, 2 MHz, 8 x 9 mm, Lemo-00 Connector
Angle Probe SONOSCAN WS 70-2 EN 70°, 2 MHz, 8 x 9 mm, Lemo-00 Connector
Angle Probe SONOSCAN WS 45-4 EN 45°, 4 MHz, 8 x 9 mm, Lemo-00 Connector
Angle Probe SONOSCAN WS 60-4 EN 60°, 4 MHz, 8 x 9 mm, Lemo-00 Connector

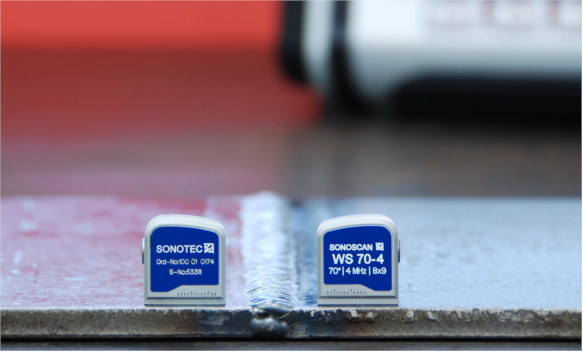

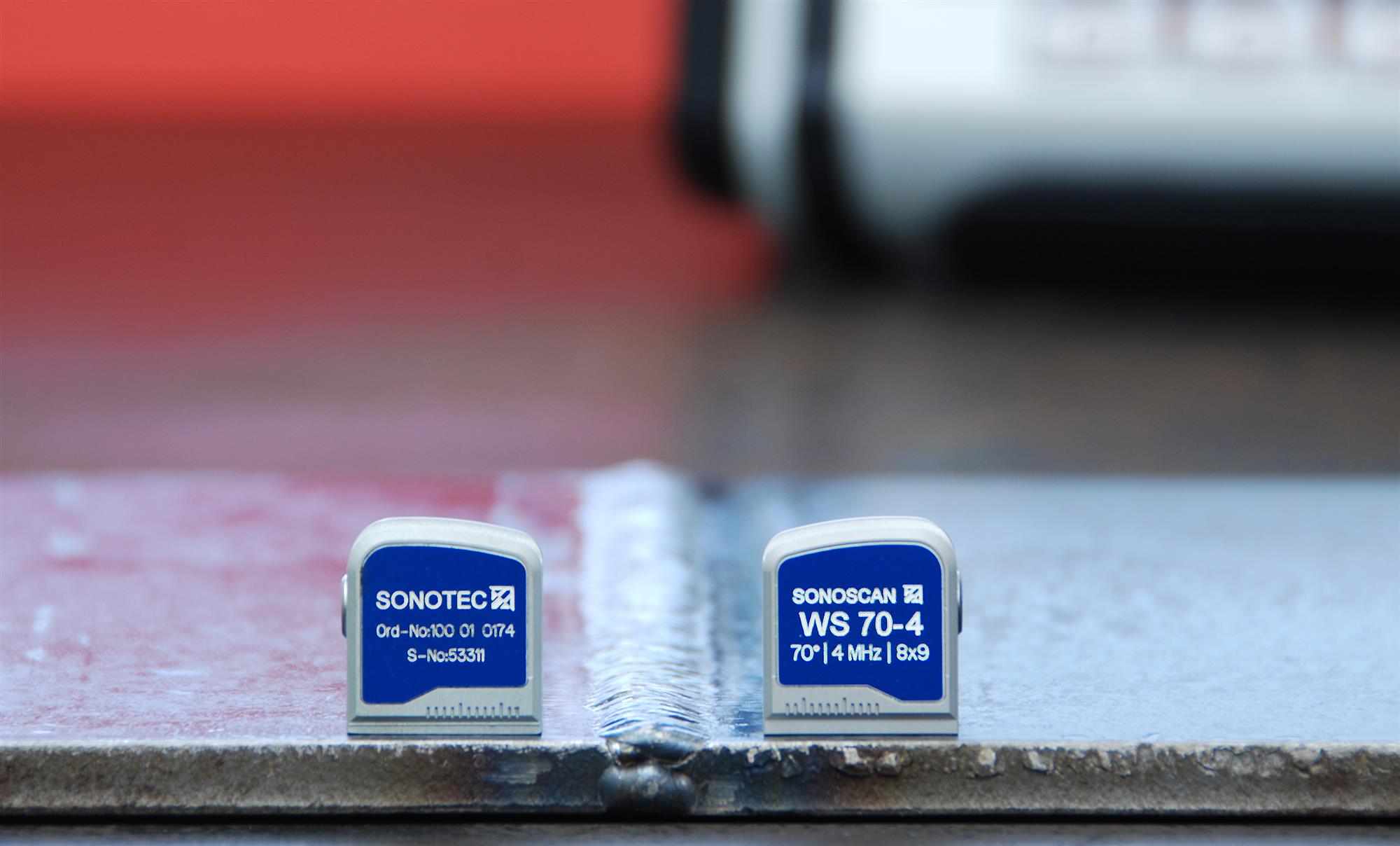

Angle Probe SONOSCAN WS 70-4 EN 70°, 4 MHz, 8 x 9 mm, Lemo-00 Connector
Angle Probe SONOSCAN WM 45-2 EN 45°, 2 MHz, 14 x 14 mm, Lemo-00 Connector
Angle Probe SONOSCAN WM 60-2 EN 60°, 2 MHz, 14 x 14 mm, Lemo-00 Connector

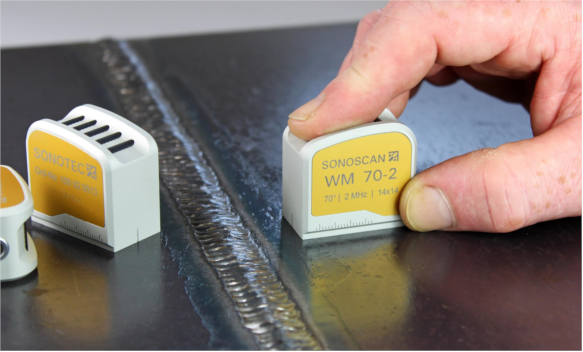

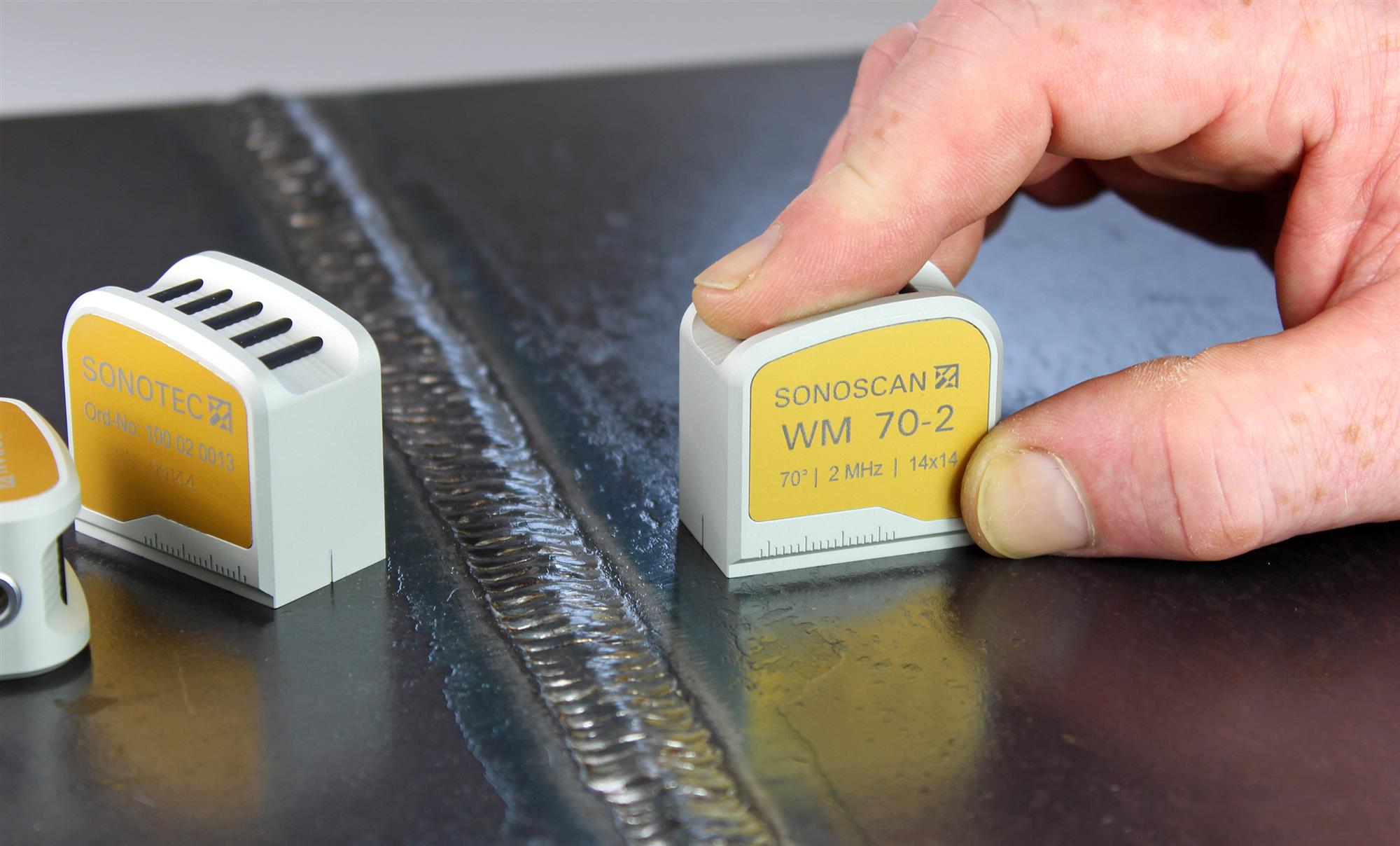

Angle Probe SONOSCAN WM 70-2 EN 70°, 2 MHz, 14 x 14 mm, Lemo-00 Connector
Angle Probe SONOSCAN WL 45-2 EN 45°, 2 MHz, 20 x 22 mm, Lemo-1 Connector
Angle Probe SONOSCAN WL 60-2 EN 60°, 2 MHz, 20 x 22 mm, Lemo-1 Connector
Angle Probe SONOSCAN WL 70-2 EN 70°, 2 MHz, 20 x 22 mm, Lemo-1 Connector
Angle Probe SONOSCAN WS 45-1 EN 45°, 1 MHz, 8 x 9 mm, Lemo-00 Connector
Angle Probe SONOSCAN WS 60-1 EN 60°, 1 MHz, 8 x 9 mm, Lemo-00 Connector
Angle Probe SONOSCAN WS 70-1 EN 70°, 1 MHz, 8 x 9 mm, Lemo-00 Connector
