SONOWALL 50

Advantages:

> High precision measurement

> Stable measurement data readout

> Integrated data logger

> Universal probe with a broad measuring range

> Functional design of device and software



Applications:

> Wall thickness measurement especially of pipes with small diameters

Download File Website Link
  • Overview
  • Technical Data
  • Downloads
  • Kit contents

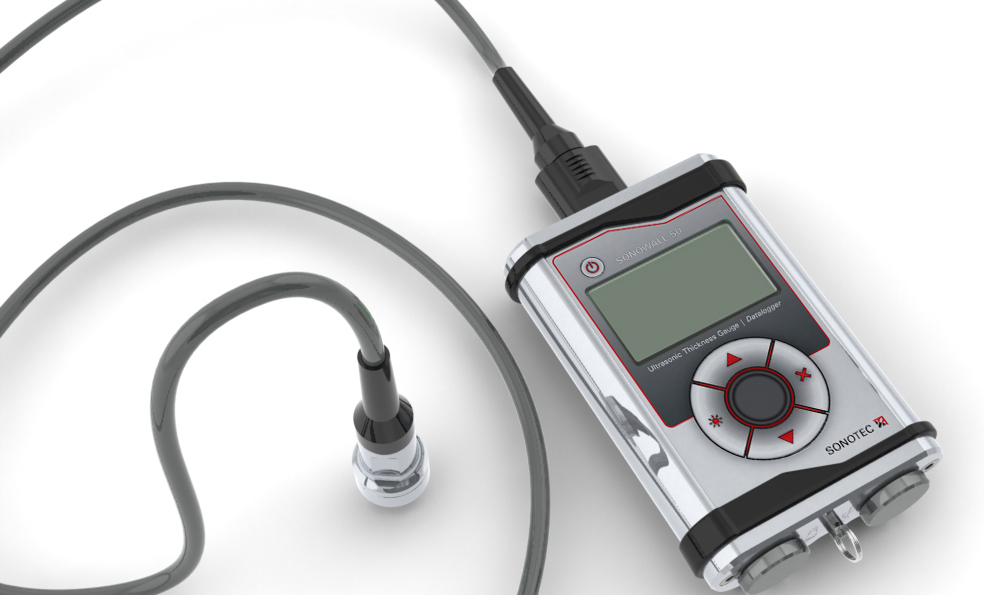

> The light and compact ultrasonic wall thickness gage SONOWALL 50 enables the precise measurement of the wall thickness of components made of metal, glass, ceramics and plastics.

> This efficient device allows the measurement of materials with both flat and curved surfaces.

> The wall thickness gauge enables detection of wear and corrosion, for example, on ships, storage tanks, pipelines and cranes etc.

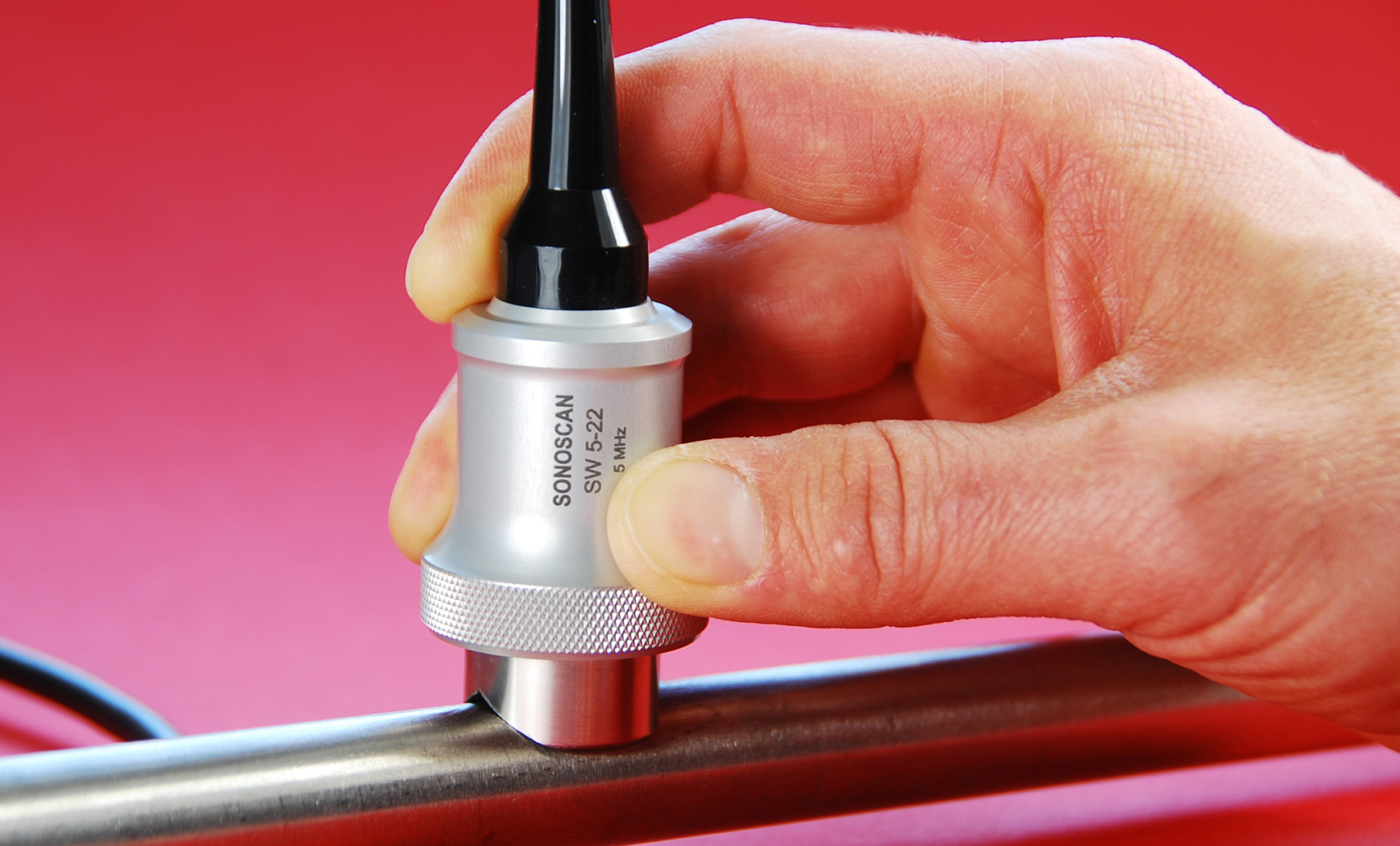

> The SONOSCAN probe SW 5-22 for the SONOWALL 50 has been specifically designed for the measurement of wall thicknesses of pipes with small diameters.





SONOSCAN Wall Thickness Probes

For Flexible Application in the Measuring of Wall Thickness



Title Comments
Operating temperature -10 °C bis 50 °C
Protection class Device: IP65, probe: IP67
Application Wall thickness measurement gage
Measuring range 0,8 - 400 mm steel (dependent on probe type)
Sound velocity range 1.000 - 10.000 m/s
Probe frequencies 2 MHz, 5 MHz, special probes for pipes with small diameters (5 MHz), others upon request
Measurement resolution 0,01 mm (0,0001 inch)
Storage temperature -20 °C bis 10 °C
Test block Stainless steel (9 mm), integrated in housing
Connectors USB port for data logger, double Lemo 00 for probes
Operating time 40 hours
Data loggers Max. 10.000 readings
Dimensions: L x W x H 128 x 80 x 28 mm
Weight 260 g
Software For a convenient evaluation of the measurements
Display: Illuminated display (128 x 64 Pixel)

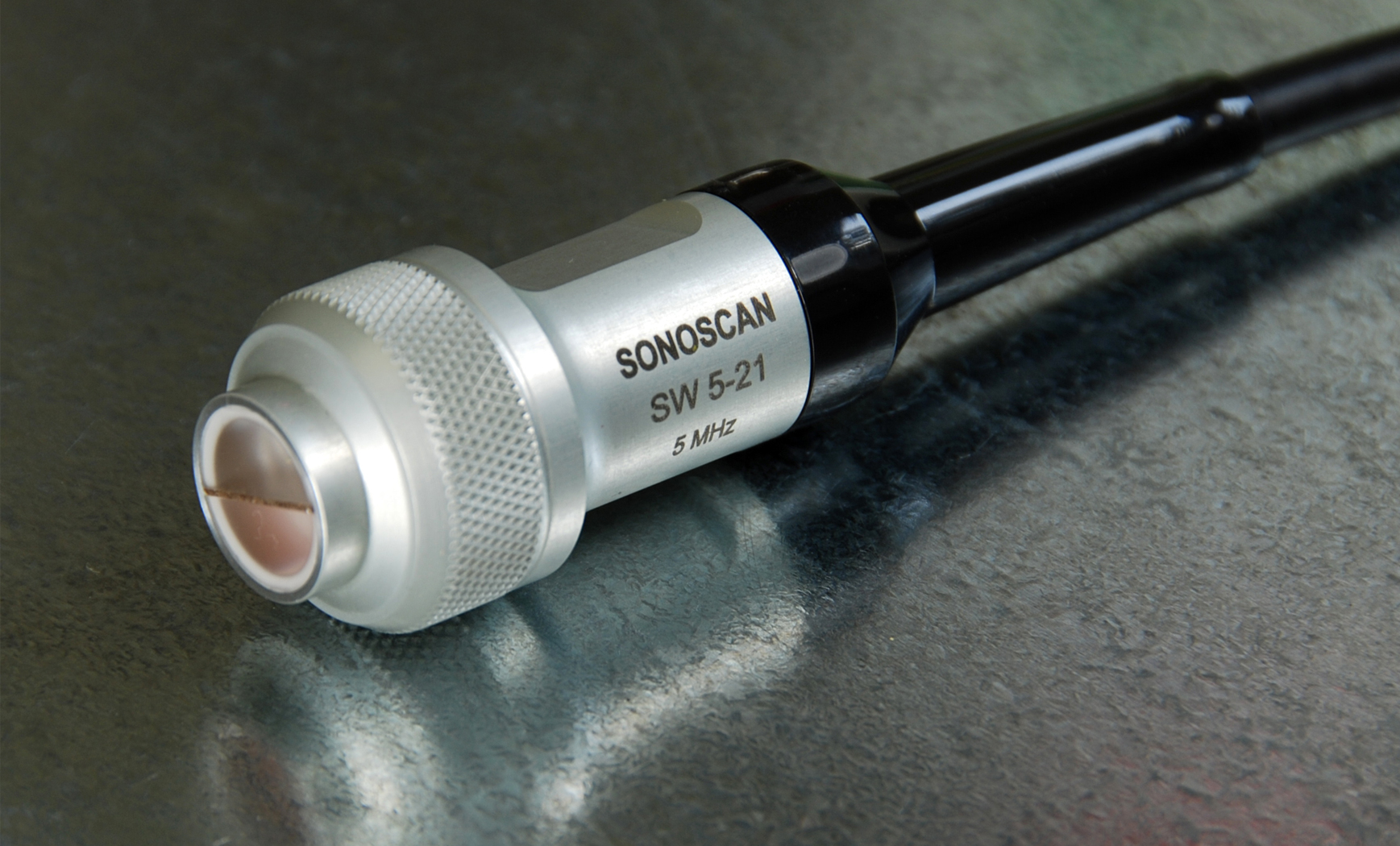

> Sonoscan Standard Probe SW 5-21





> Transportation and storage case





>
