Multigauge 5700 Hand Held



Multigauge 5700 Datalogger

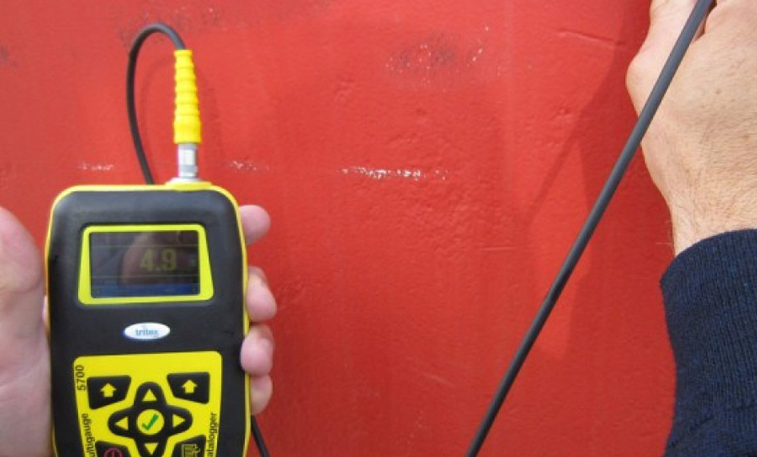

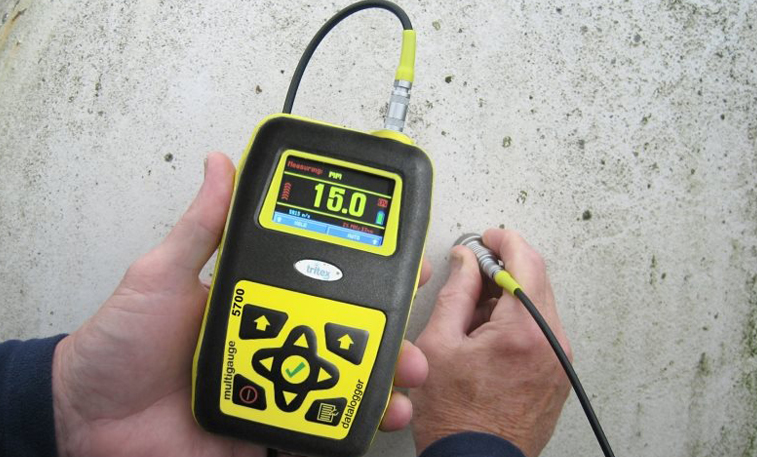

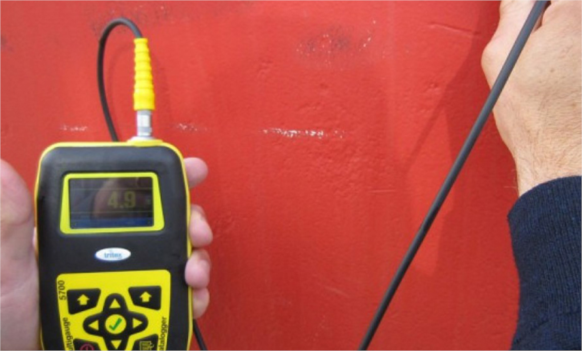

 The Multigauge 5700 Datalogger wall thickness meter has all the same features of the Multigauge 5600 but with the added advantage of having the capability to store measurements within the gauge. Templates can be set up to store readings in a grid, string or combination of both, allowing complete versatility for all applications. Data transfer between the wall thickness meter and PC is done using a wireless RF transceiver. Intuitive menus ensure setup is very easy whilst the bright full colour LCD display can be used in all light conditions. Dedicated software, called Communicator, acts as the interface between the gauge and the PC. The gauge uses multiple echo to ignore coatings up to 6mm thick. An optional leather case is also available for extra protection.

Website Link
  • Overview
  • Technical Data
  • Video
  • Kit contents

FEATURES:



> Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected

> Wireless data transmission to PC or laptop

> Stores measurements in a grid or string format

> Echo strength indicator

> Measurement hold feature

> Rugged, durable and robust

> Leather protective case available

> No zeroing required

> Large bright colour LCD display giving user information

> Automatic Measurement Verification (AMVS)

> Intelligent Probe Recognition (IPR)

> Easy calibration with menu driven buttons

> Easy to use clear graphic menu



Title Comments
Measurement range 1 - 250 mm (0.04” - 10”) depending on probe used
Storage 32 Mb
Operating temperature -10°C to +50°C (14°F to 122°F)
Probes Single crystal soft faced - 2.25 MHz, 3.5 MHz & 5 MHz
Sound velocity range From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Display Colour LCD
Probe Sizes: 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”)
Measurement Mode: Multiple Echo
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
Batteries: 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life: Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight: 325 g (11.5 ounces) including batteries
Storage Temp: -10°C to +60°C (14°F to 140°F)
Data Transmission Wireless RF

> Transportation and storage case





> Probe





> Cable
