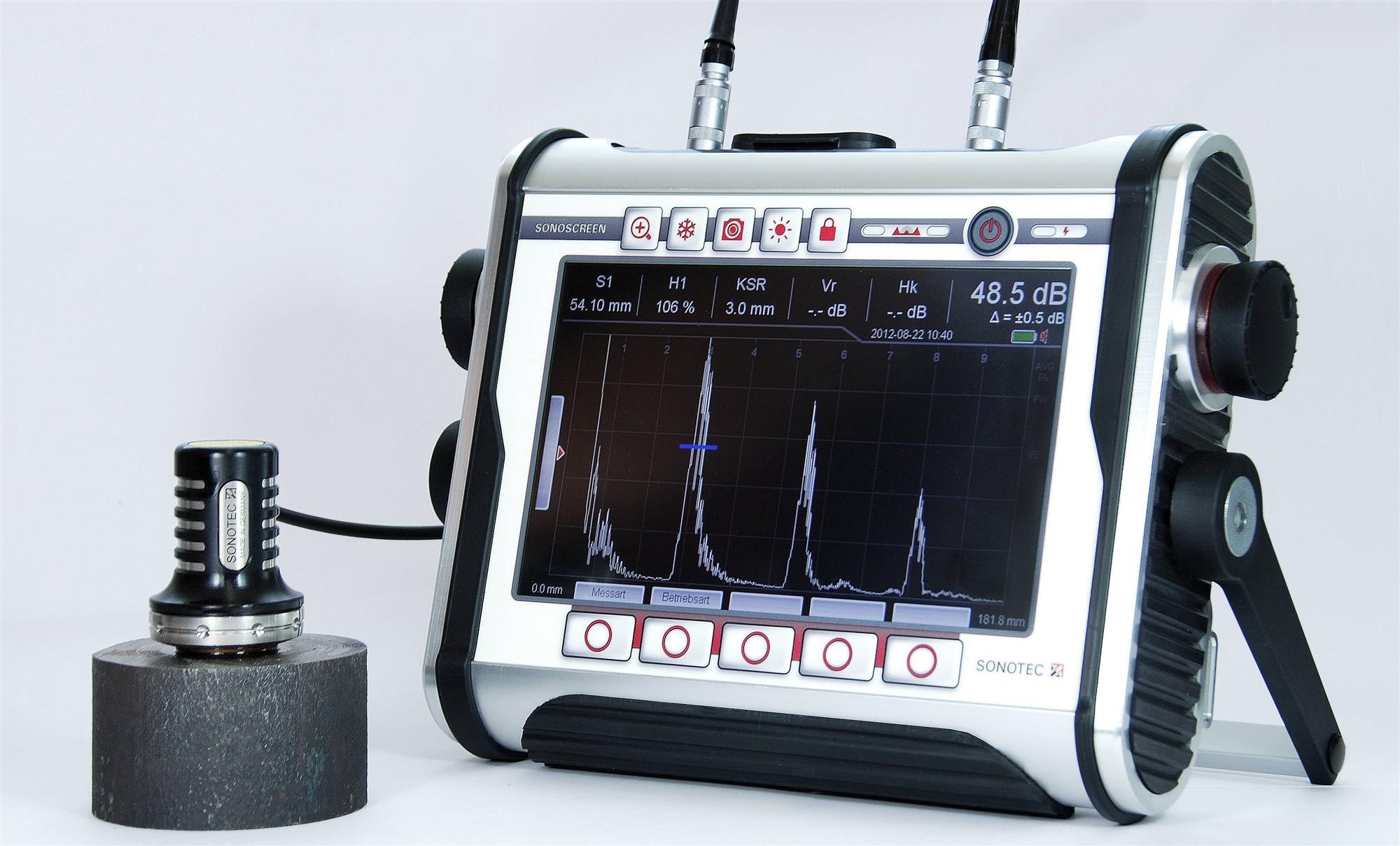

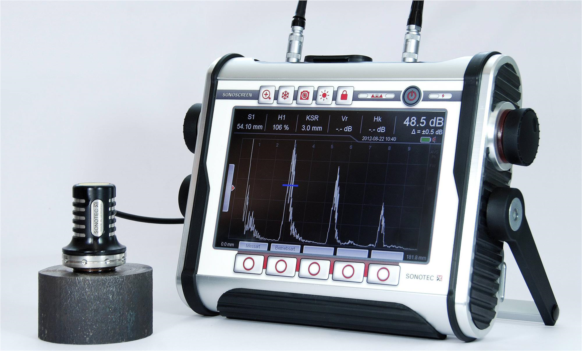

Sonoscreen ST-10

Applications of ultrasonic testing vary, ranging from weld inspection to wall thickness measurement and the detection of discontinuities such as invisible cracks, inclusions, voids and other discontinuities in metals, plastics, ceramics and composites.

Experienced material testers have supervised the development of SONOTEC flaw detector and probes focusing on simple operation procedures and high sensitivity while simultaneously providing a robust design.

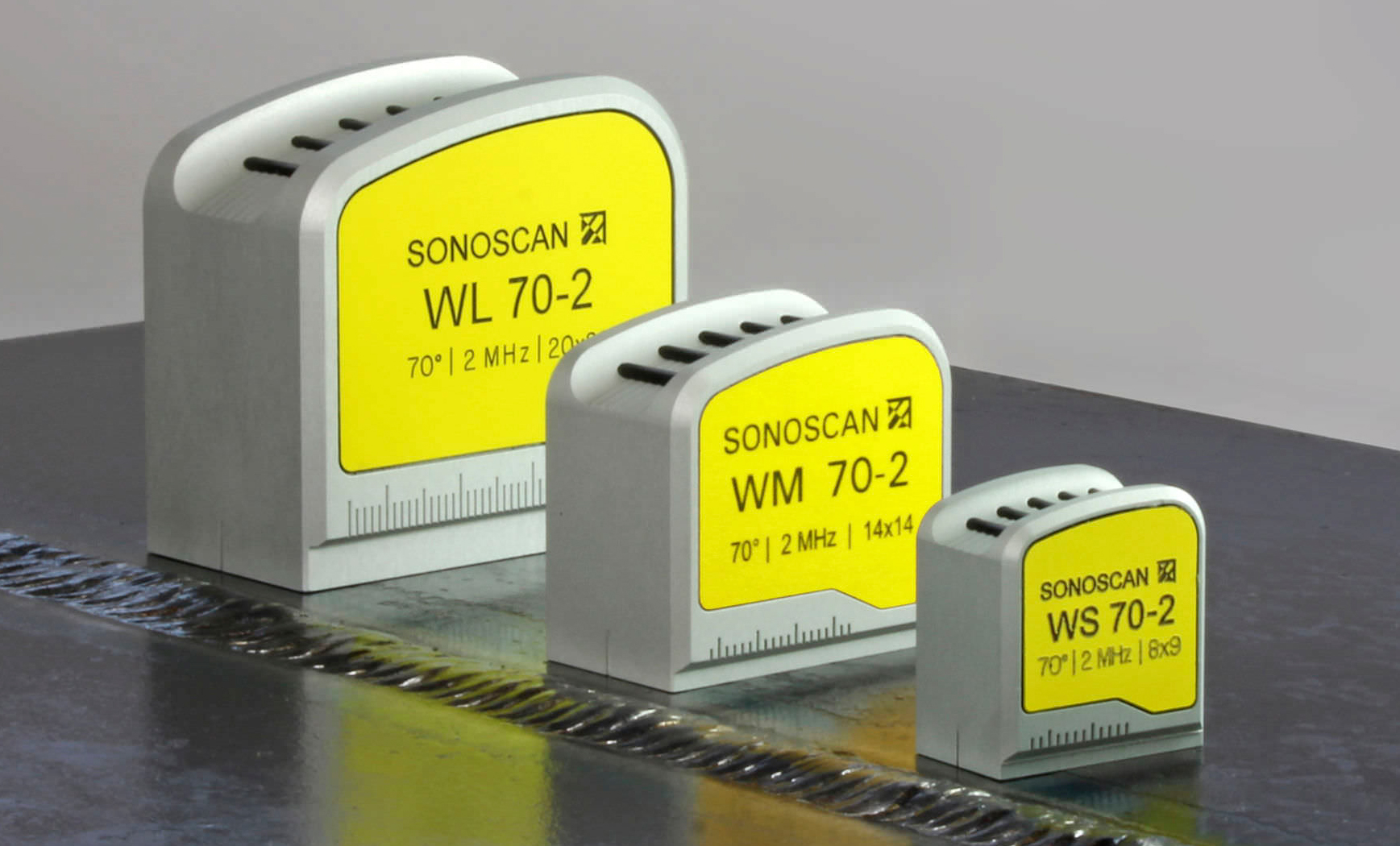

We offer a wide range of corresponding SONOSCAN probes. Select the suitable probe from our product program according to your application.

In addition to our standard products, we also manufacture customer-specific solutions.



Download File Website Link
  • Overview

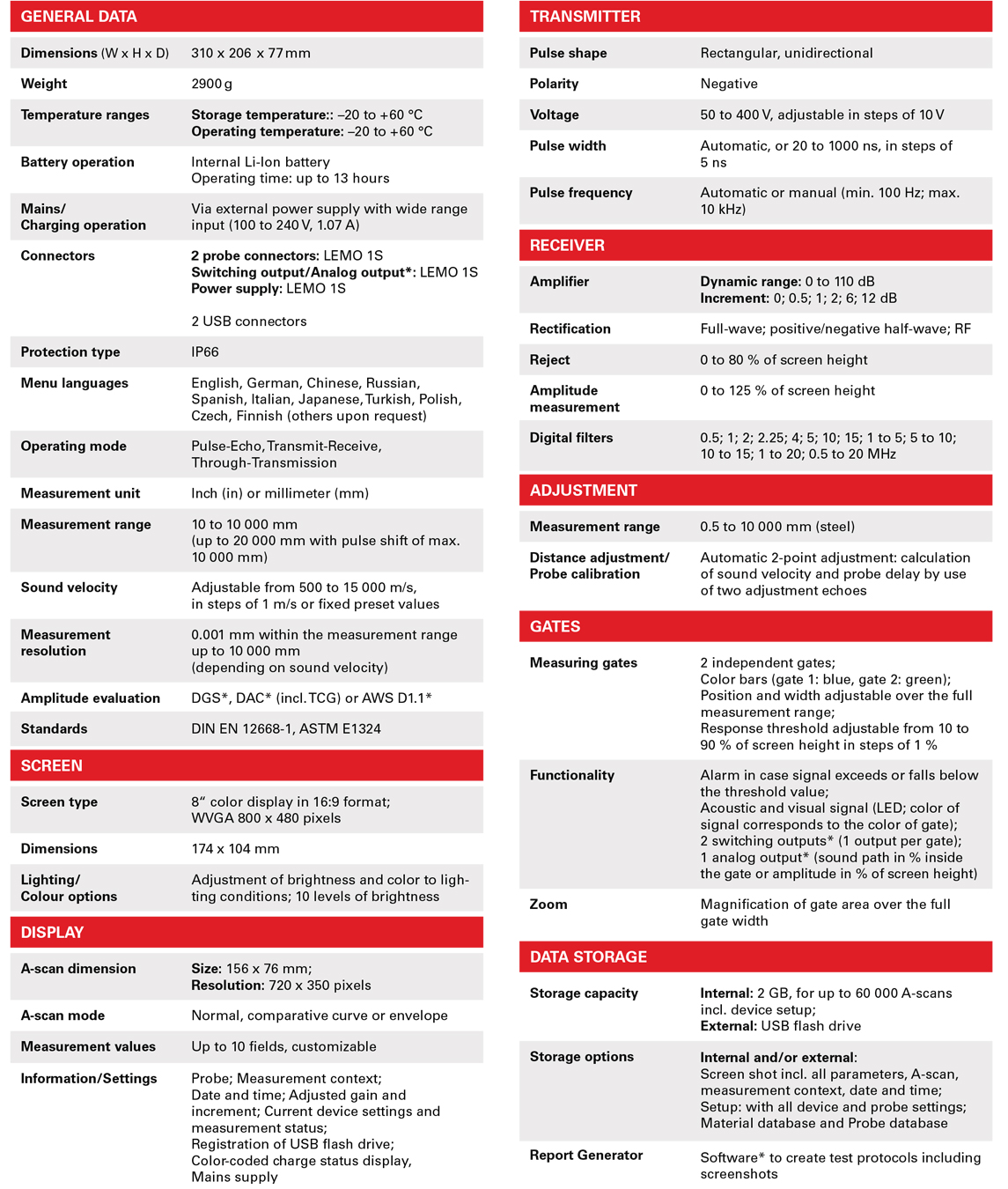

  • Technical Data
  • Downloads
  • Video
  • Kit contents

Features:

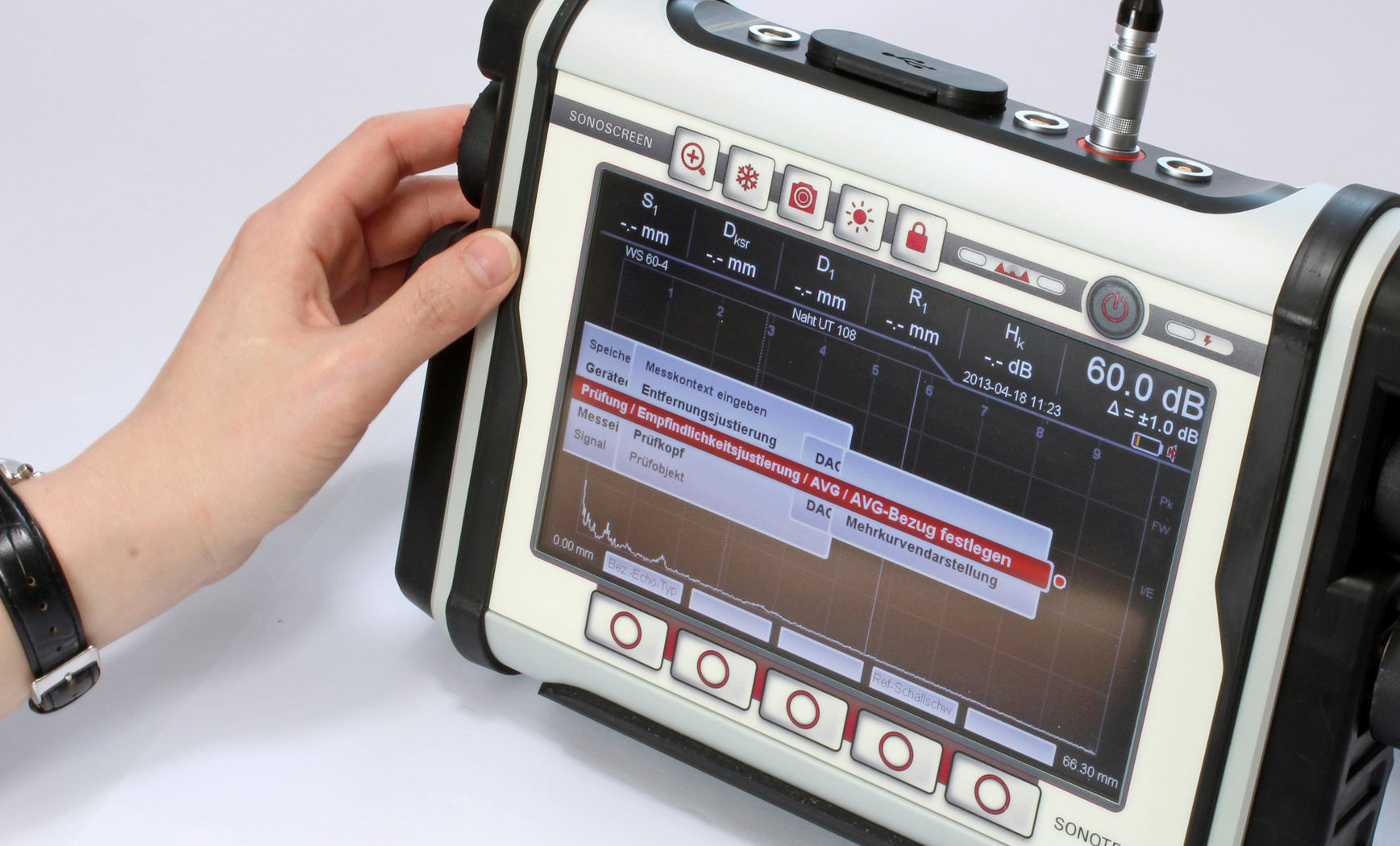

> Great Performance and intuitive menu navigation

> High performing square wave transmitter

> High-resolution 8" graphic display, 16:9 format

> 5 ns resolution over the entire measurement range

> External data storage on USB flash drive

> Designed for rough applications

> 2 GB internal memory for storing up to 60.000 A-scans plus device configuration

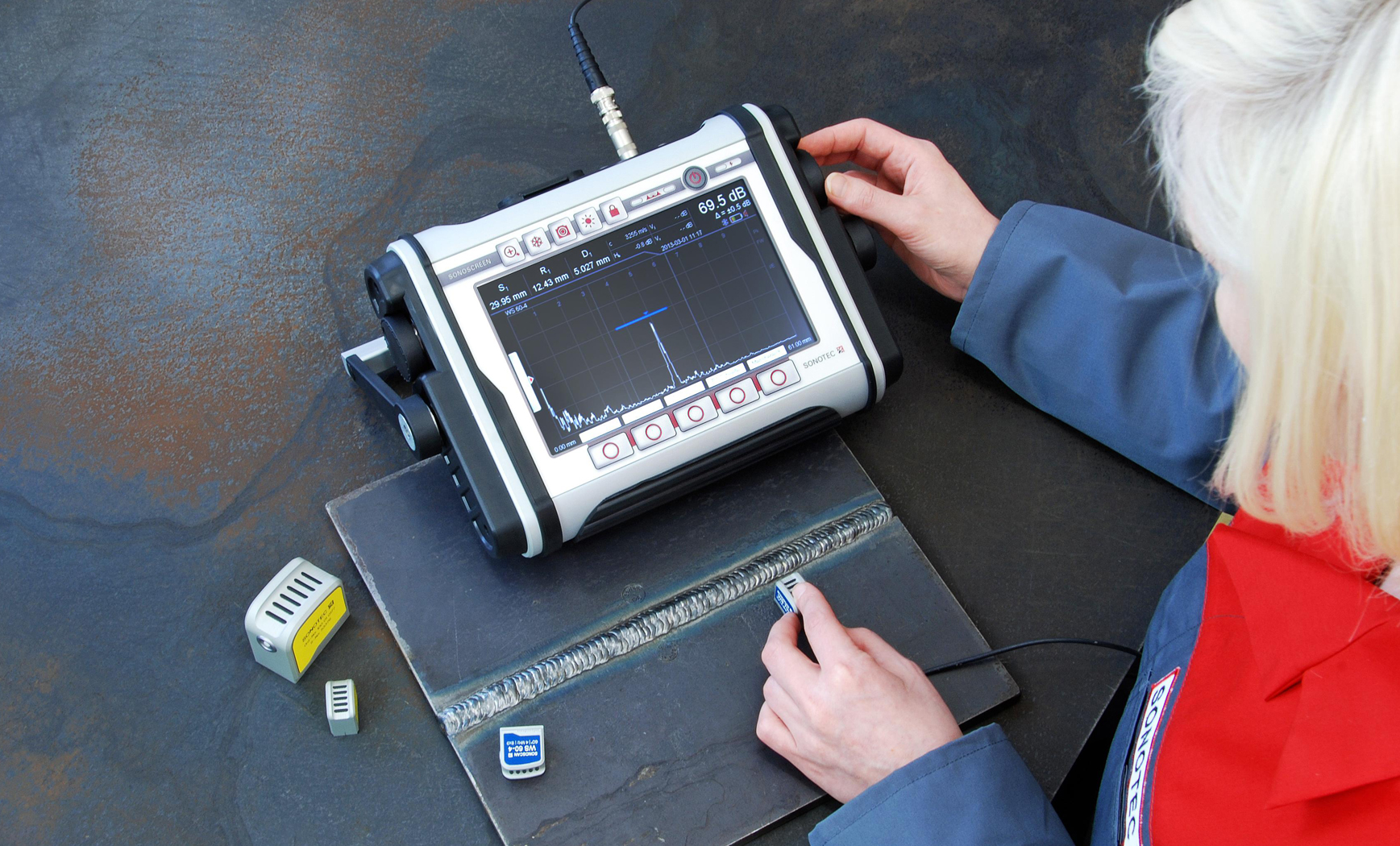

> The SONOSCREEN ST10 can be used for all conventional ultrasonic tests such as weld inspections, wall thickness measurements and the detection of discontinuities













> Protective working case (Optional)





> Transportation and storage case





> oil couplant
