Elcometer 456 Coating Thickness Gauge

The Elcometer 456 dry film thickness gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality - from the entry level Elcometer 456 Model B, to the top of the range Elcometer 456 Model T.

Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement - allowing for consistent, repeatable and accurate dry film thickness results.

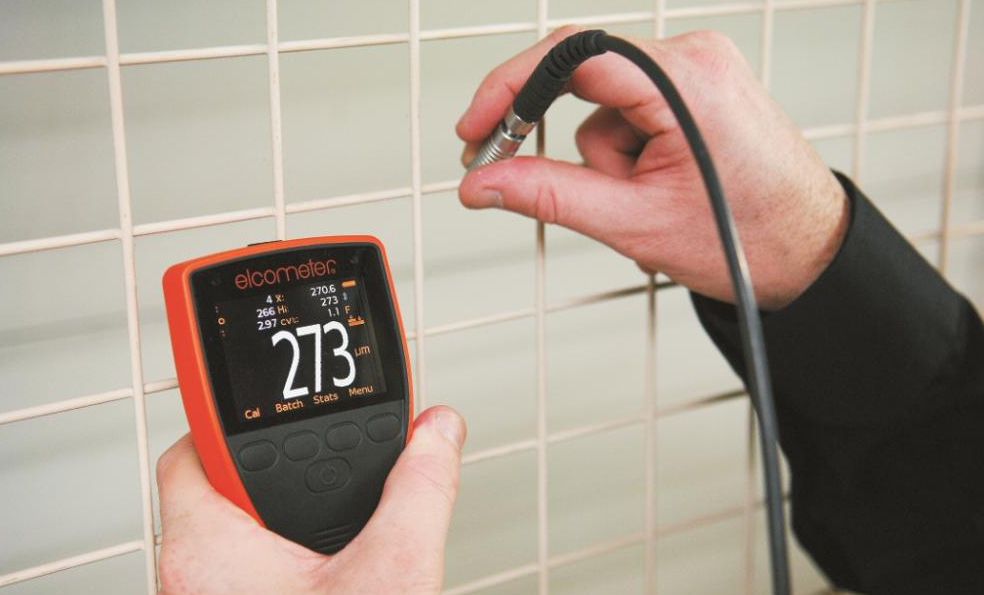

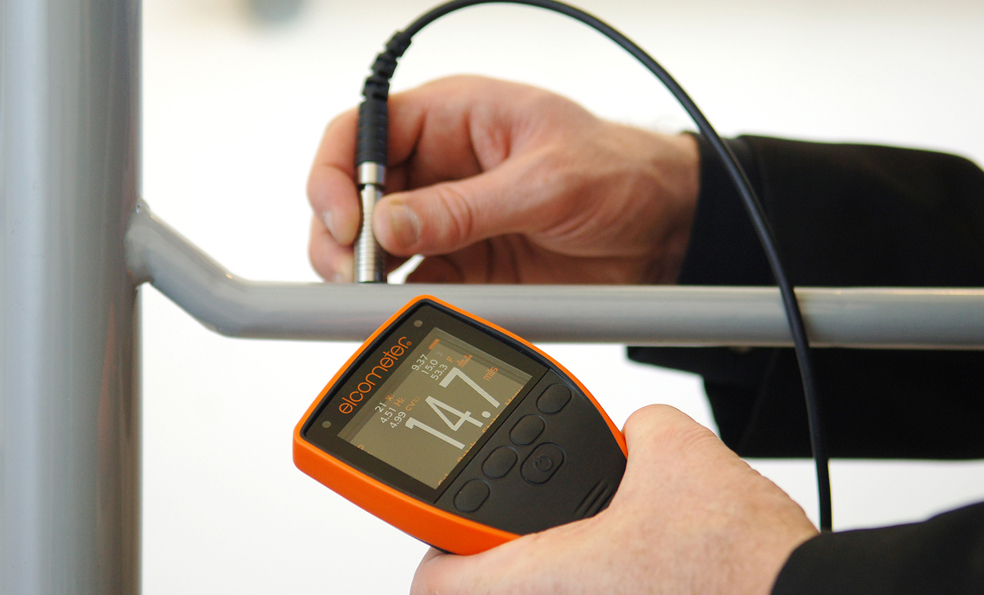

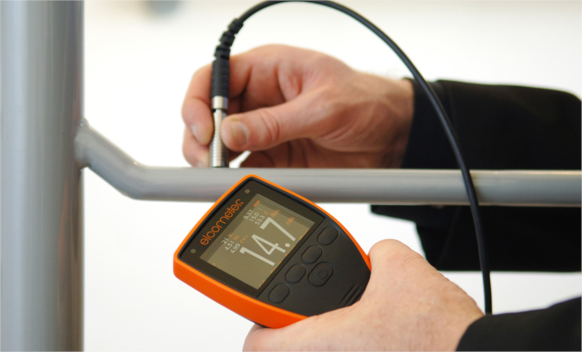

Separate coating thickness gauge models, with their wide range of probes, provide even greater dry film thickness measurement flexibility.

Website Link
  • Overview

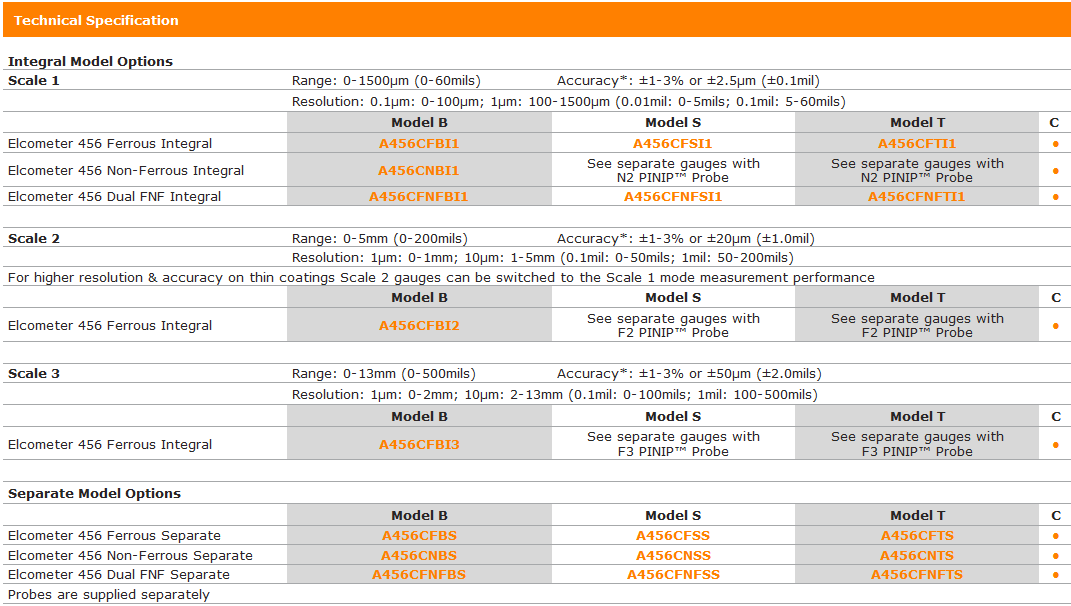

  • Technical Data
  • Downloads
  • Kit contents

Features



» Large buttons ideal for gloved hands

» Factory calibrated for immediate use

» Thickness measurement capability to ±1%

» Increased reading resolution for thin coatings

» Measures accurately on smooth, rough, thin and curved surfaces

» Repeatable and reproducible

» Sealed, heavy duty and impact resistant

» Suitable for use in harsh environments

» Multiple calibration memories

» Stores up to 150,000 readings in 2,500 batches

» Measures up to 31mm (1220mils) of coating on metal substrates

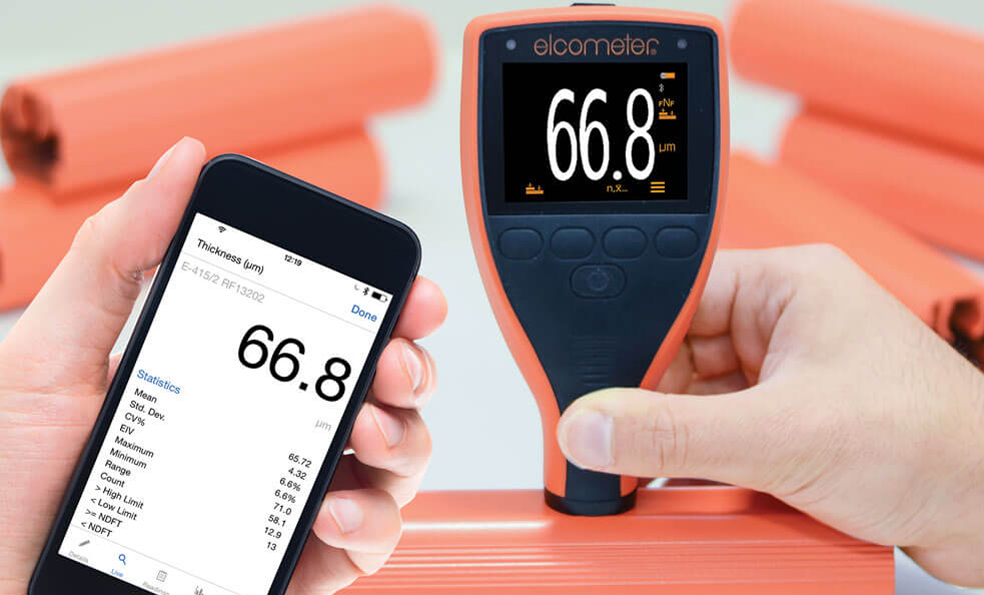

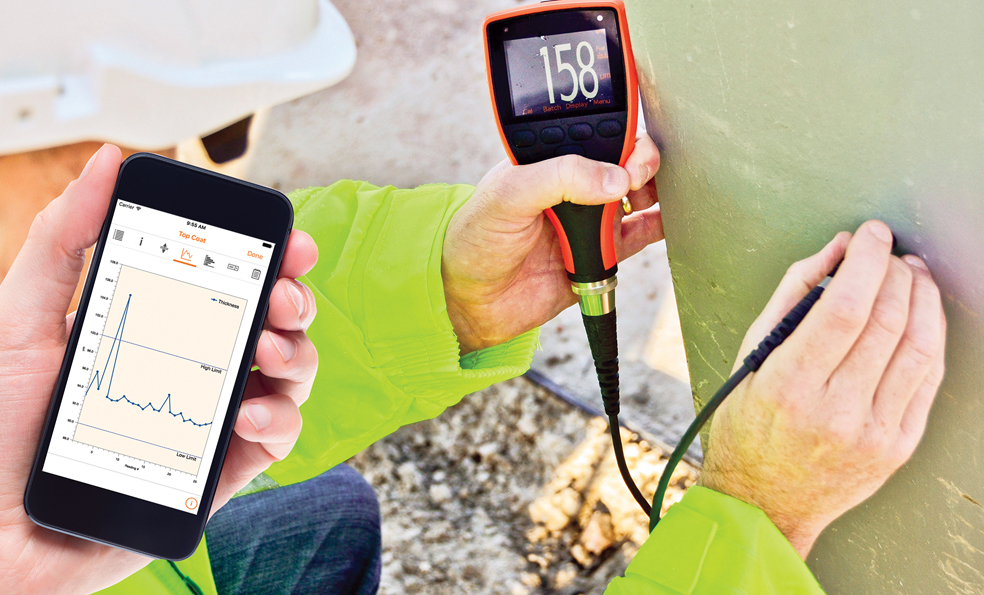

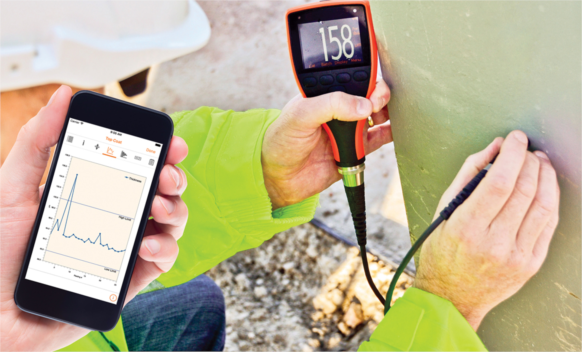

» USB and Bluetooth® data output to iPhone* or Android™ devices





> calibration foils (integrals only)





> protective case





>
