Surface Roughness Tester SJ210

Surftest SJ-210 Surface Roughness Tester

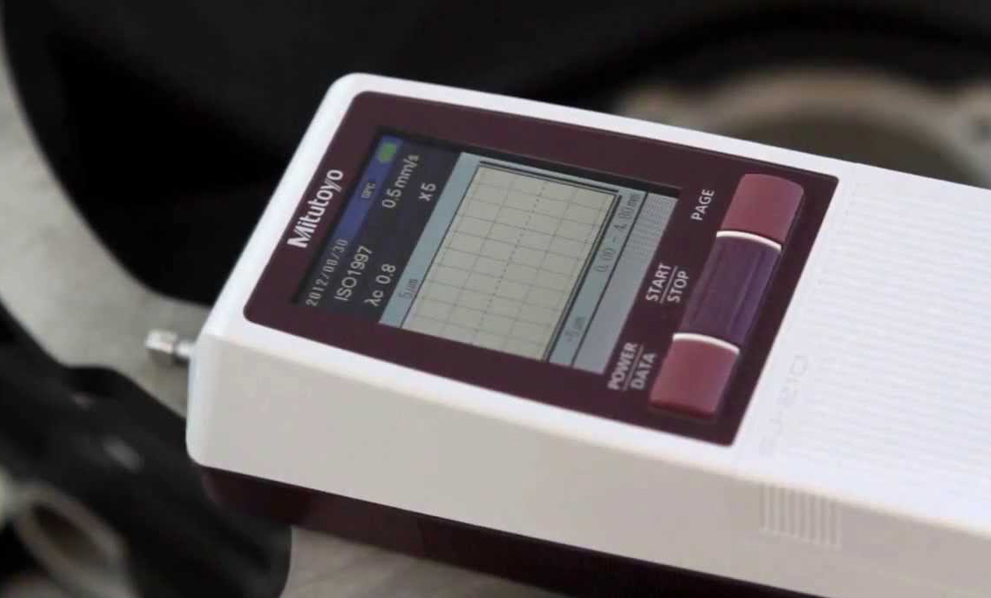

  • The 2.4-inch color graphic LCD provides excellent readability and an intuitive display that is easy to negotiate. The LCD also includes a backlight for improved visibility in dark environments.
  • The Surftest SJ-210 can be operated easily using the buttons on the front of the unit and under the sliding cover.
  • Up to 10 measurement conditions and one measured profile can be stored in the internal memory.
  • An optional memory card can be used as an extended memory to store large quantities of measured profiles and conditions.
  • Access to each feature can be password-protected, which prevents unintended operations and allows you to protect your settings.
  • The display interface supports 16 languages, which can be freely switched.
  • An alarm warns you when the cumulative measurement distance exceeds a preset limit.
  • The Surftest SJ-210 complies with the following standards: JIS (JIS-B0601-2001, JIS-B0601-1994, JIS B0601-1982), VDA, ISO- 1997, and ANSI.
  • In addition to calculation results, the Surftest SJ-210 can display sectional calculation results and assessed profiles, load curves, and amplitude distribution curves.

.

Download File Website Link
  • Overview

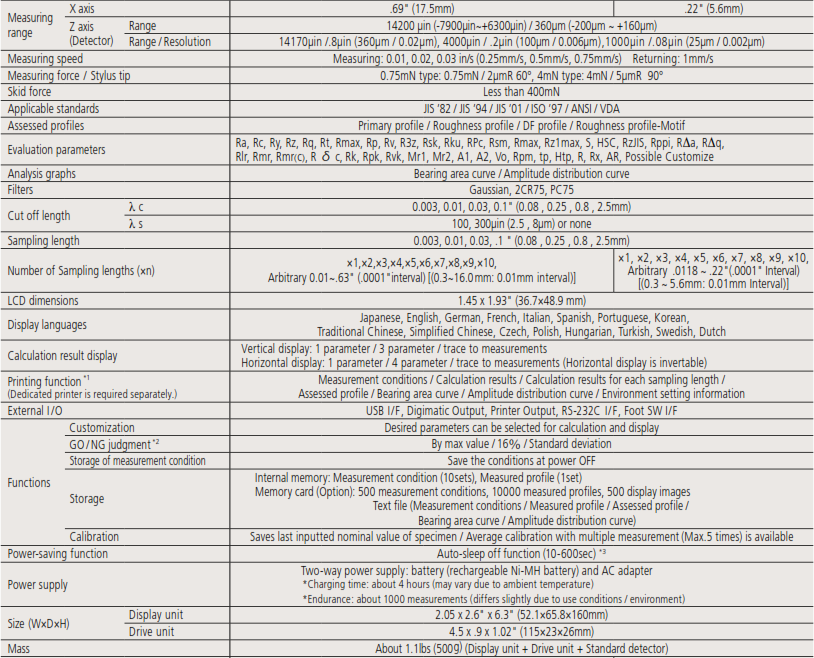

  • Technical Data
  • Downloads
  • Kit contents

Features:



» The 2.4-inch color graphic LCD provides excellent readability and an intuitive display that is easy to negotiate. The LCD also includes a backlight for improved visibility in dark environments.

» The Surftest SJ-210 can be operated easily using the buttons on the front of the unit and under the sliding cover.

» Up to 10 measurement conditions and one measured profile can be stored in the internal memory.

» An optional memory card can be used as an extended memory to store large quantities of measured profiles and conditions.

» Access to each feature can be password-protected, which prevents unintended operations and allows you to protect your settings.

» The display interface supports 16 languages, which can be freely switched.

» An alarm warns you when the cumulative measurement distance exceeds a preset limit.

» The Surftest SJ-210 complies with the following standards: JIS (JIS-B0601-2001, JIS-B0601-1994, JIS B0601-1982), VDA, ISO- 1997, and ANSI.

» In addition to calculation results, the Surftest SJ-210 can display sectional calculation results and assessed profiles, load curves, and amplitude distribution curves.

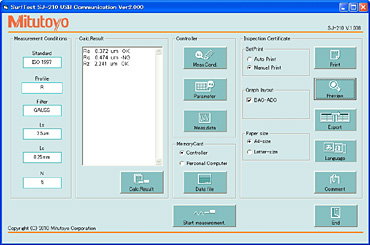

Screen of Software:

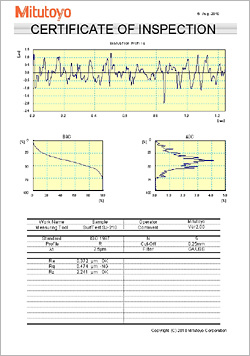

Screen of report:





Screen of Software:   Screen of report:



Mitutoyo-Optional Accessories for Surftest SJ-210:



> Protective working case





> Transportation and storage case





> oil couplant
