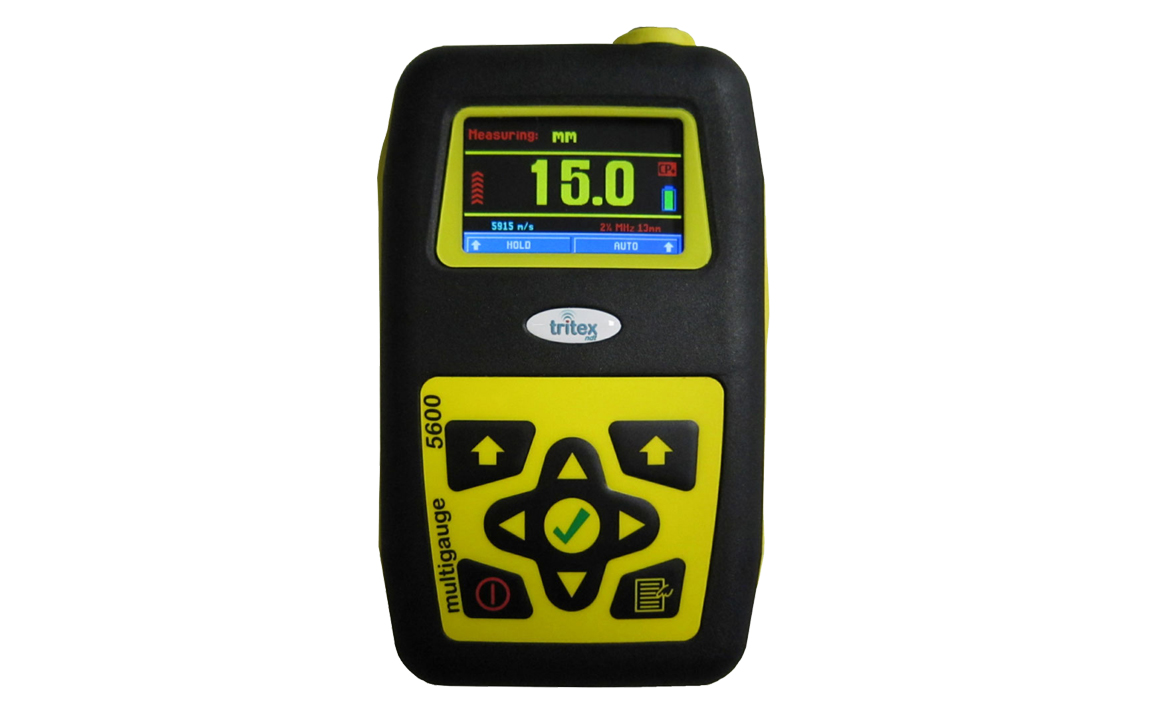

Multigauge 5600 Hand Held

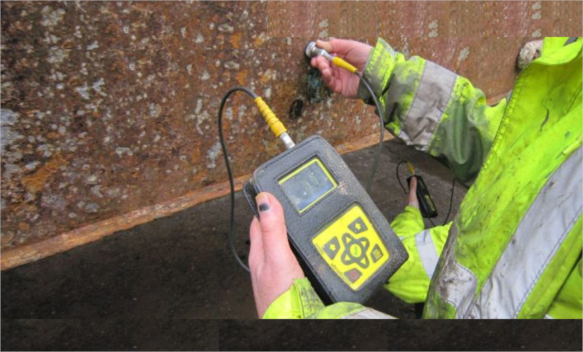

The Multigauge 5600 ultrasonic thickness meter is a simple, robust ultrasonic thickness gauge designed for most common thickness gauging applications.  The easy to use keypad allows operator interface whilst the bright full colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. The gauge uses multiple echo to ignore coatings up to 6mm thick. . All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally,  the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals. A protective leather case is also available.

Website Link
  • Overview
  • Technical Data
  • Downloads
  • Video
  • Kit contents

Features:

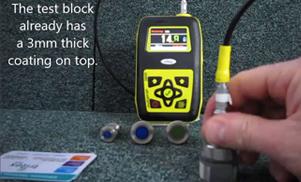

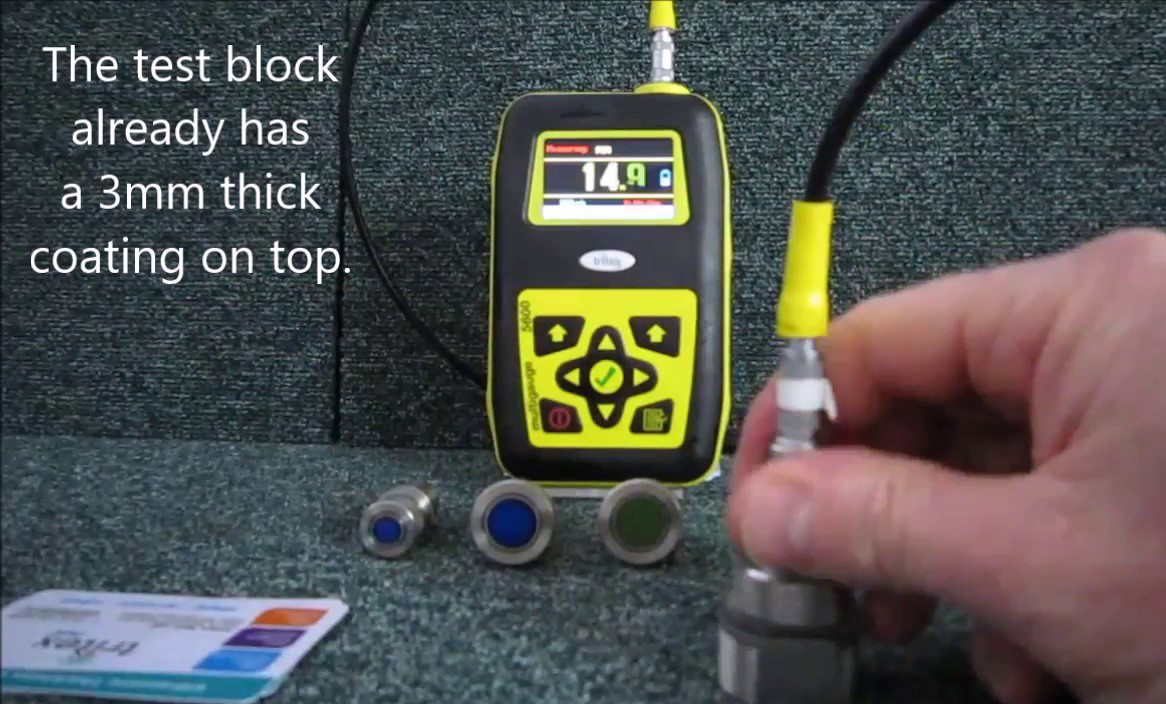

» Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected

» Echo strength indicator

» Measurement hold feature

» Rugged, durable and robust

» Leather protective case available

» No zeroing required

» Large bright colour LCD display giving user information

» Automatic Measurement Verification (AMVS)

» Intelligent Probe Recognition (IPR)

» Easy calibration with menu driven buttons

» Easy to use clear graphic menu









Title Comments
Operating temperature -10°C to +50°C (14°F to 122°F)
Storage temperature -10°C to +60°C (14°F to 140°F)
Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes: Single crystal soft faced - 2.25 MHz, 3.5 MHz & 5 MHz
Measurement Range: 1 - 250 mm (0.04” - 10”) depending on probe used
Probe Sizes: 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”)
Measurement Mode: Multiple Echo
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Display: Colour LCD
Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
Batteries: 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life: Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight: 325 g (11.5 ounces) including batteries
Environmental: Case rated to IP65, RoHS and WEEE compliant

> Transportation and storage case





> Probe





> Cable
