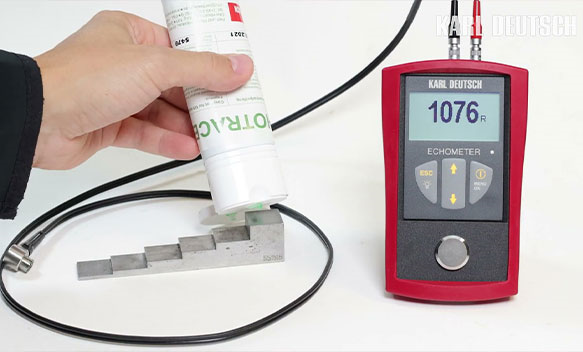

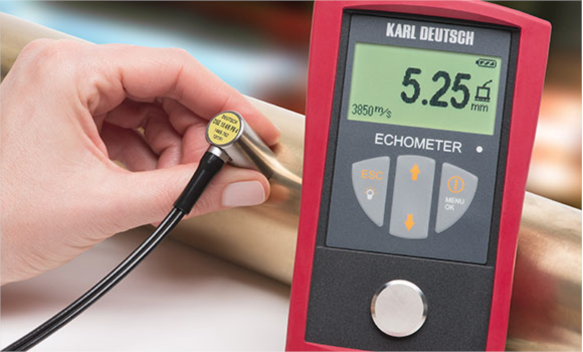

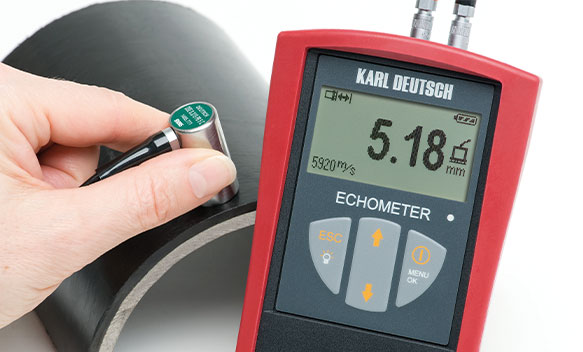

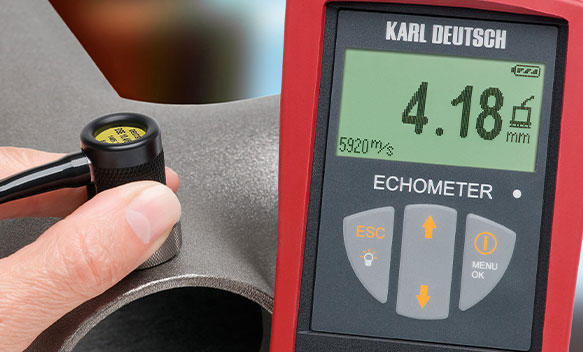

With the standard procedure (TP-BE mode) for measuring wall thickness and sound velocity, the probe is placed on the uncoated surface of the material to be measured.

The ECHOMETER 1076 TC Data offers more: Paint or plastic coatings up to a thickness of approx. 4 mm can be blanked out in order to precisely determine the wall thickness also through the coating. The measurement result is then calculated using successive backwall echoes (BE-BE mode).

The data management makes it possible to store measured values in folders, as you are accustomed to on the PC. For further data evaluation a PC can be connected via the interface.

The ECHOMETER 1076 Data works with TR probes. In addition to a standard probe for the most common wall thicknesses from 1.2 to 250 mm, a high-resolution probe for thin-walled components from 0.5 to 25 mm and a low-frequency probe for wall thicknesses up to 400 mm are available.
